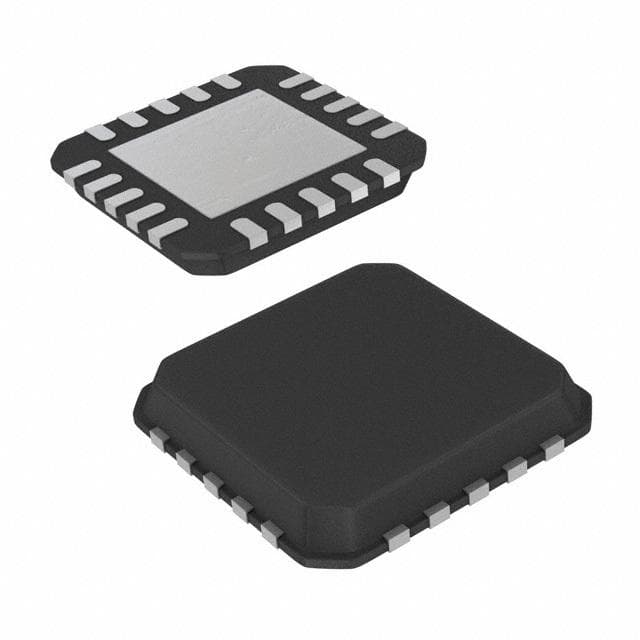

Renesas ISL6532CR

Manufacturer No:

ISL6532CR

Manufacturer:

Renesas

Package:

VQFN

Description:

20 Terminations Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6532CR information

Renesas ISL6532CR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6532CR.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Published
2003

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO REQUIRES A 3.3V & 12V SUPPLY

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
20

JESD-30 Code
S-PQCC-N20

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Operating Supply Current
5.25mA

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Switching Frequency-Max
280kHz

Length
6mm

Height Seated (Max)
1mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6532CR.

Datasheets:

intersil-isl6532cr-datasheets-0749.pdf

intersil-isl6532cr-datasheets-7078.pdf

ISL6532CR Overview

The package is conveniently packaged the power management in VQFN .On the power management, you can find 20 terminals.As an analog IC with a SWITCHING CONTROLLER value, the instruments designs has been widely praised.The board has a Surface Mount for mounting on PCBs or other boards.This power ic has 20 pins starting from the pinout.The power management ic operates at a voltage of 5.25mA volts.It belongs to the Switching Regulator or Controllers series.It is also possible to find ALSO REQUIRES A 3.3V & 12V SUPPLY using this integrated power supplies.Keeping the temperature below 70°C is not recommended.It cannot be operated at a temperature lower than 0°C .
