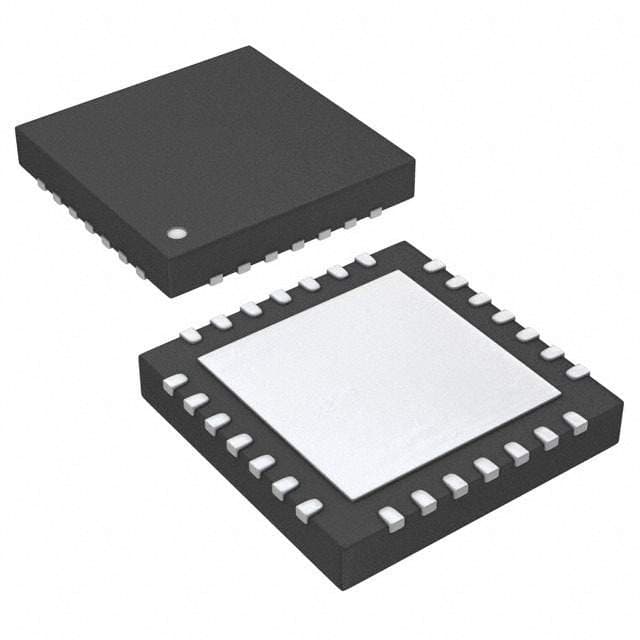

Renesas ISL6532CCRZ

Manufacturer No:

ISL6532CCRZ

Manufacturer:

Renesas

Package:

VQFN

Description:

28 Terminations 28 Pin Specialized Power Management ICs 2 Outputs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6532CCRZ information

Renesas ISL6532CCRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6532CCRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Number of Pins
28

Published
2001

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

Number of Outputs
2

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Operating Supply Current
5.25mA

Voltage - Output
800mV

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
250kHz

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
6mm

Height Seated (Max)
1mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6532CCRZ.

Datasheets:

intersil-isl6532ccrz-datasheets-0252.pdf

intersil-isl6532ccrz-datasheets-6875.pdf

ISL6532CCRZ Overview

For ease of transportation, it is packaged the power management in VQFN .On the power management, you will find 28 terminals.It has been praised for its accuracy as a SWITCHING CONTROLLER analog IC.A power managment ic with 28 pins is available.In order to mount the integrated power supplies on PCBs or other boards, it has a Surface Mount .Power ic pinout starts with the 28 pins.An input voltage of 5.25mA is required for this power management ic to operate.In the Switching Regulator or Controllers series, it is included.There are 2 outputs supported by it.A temperature above 70°C is not recommended.Temperatures below 0°C are not suitable for the ic power supply.

ISL6532CCRZ Features

SWITCHING CONTROLLER analog IC
2 Outputs

ISL6532CCRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6532CCRZPower Management applications.

Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
Chromebook
