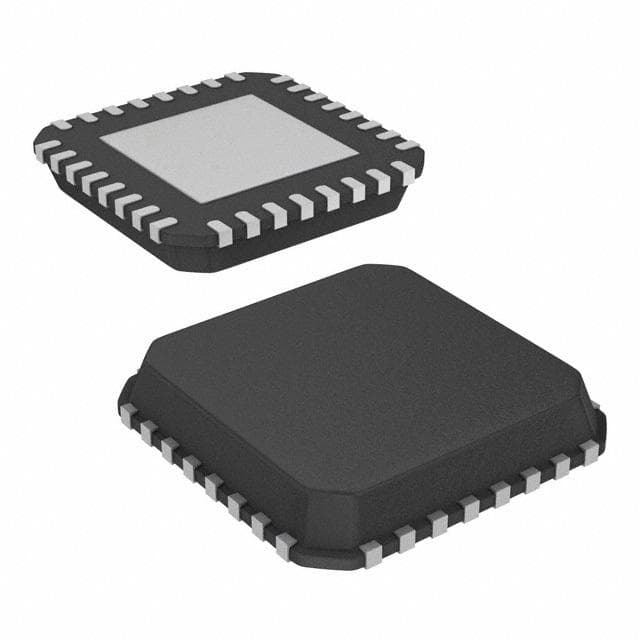

Renesas ISL6531CRZ

Manufacturer No:

ISL6531CRZ

Manufacturer:

Renesas

Package:

QFN

Description:

2.5V 240 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6531CRZ information

Renesas ISL6531CRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6531CRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Published
2000

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
TIN LEAD

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
2

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Voltage - Output
2.5V

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
325kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Duty Cycle (Max)
100 %

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6531CRZ.

Datasheets:

intersil-isl6531crz-datasheets-9026.pdf

ISL6531CRZ Overview

The system supports a total of 2 outputs. In order to facilitate transportation, alternator regulator is packaged in QFN. The output voltage of this voltage controller is 2.5V. The voltage regulator has 32terminals. It has received a great deal of support as a DUAL SWITCHING CONTROLLER regulator. The pinout of the rectifier regulator begins with the pins it has at 32. Mounting on PCBs or other boards is easy with the Surface Mount. A power supply regulator with 32pins is present. The product cannot be used at temperatures below 0°C. A temperature above 70°C is not recommended. DC voltage regulators operate at a maximum supply voltage of 5.5V volts. There is a 325kHzswitching frequency on this voltage regulator.

ISL6531CRZ Features

DUAL SWITCHING CONTROLLER analog IC
Switching at 325kHz

ISL6531CRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6531CRZ Specialized Voltage Regulators applications.

LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems

User Guide
