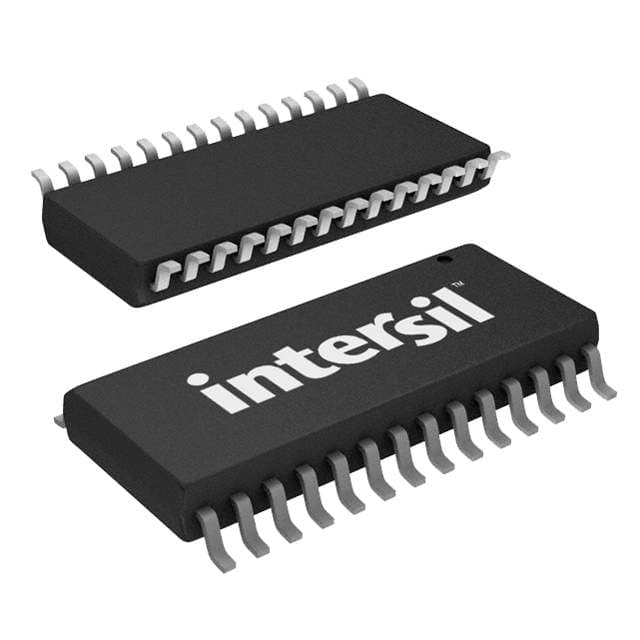

Renesas ISL6524CB-T
Renesas ISL6524CB-T

Renesas ISL6524CB-T

Manufacturer No:

ISL6524CB-T

Manufacturer:

Renesas

Package:

SOIC

Description:

240 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6524CB-T information

Renesas ISL6524CB-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6524CB-T.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • SOIC
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2001
  • JESD-609 Code
  • e0
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Additional Feature
  • ALSO CONTAINS 3 LINEAR CONTROLLERS
  • Subcategory
  • Switching Regulator or Controllers
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Terminal Pitch
  • 1.27mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 28
  • JESD-30 Code
  • R-PDSO-G28
  • Number of Outputs
  • 4
  • Input Voltage-Nom
  • 12V
  • Temperature Grade
  • COMMERCIAL
  • Analog IC - Other Type
  • SWITCHING CONTROLLER
  • Input Voltage (Min)
  • 10.8V
  • Control Mode
  • VOLTAGE-MODE
  • Input Voltage (Max)
  • 13.2V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Switcher Configuration
  • PUSH-PULL
  • Switching Frequency-Max
  • 215kHz
  • Length
  • 17.9mm
  • Height Seated (Max)
  • 2.65mm
  • Width
  • 7.5mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6524CB-T.

Datasheets:

ISL6524CB-T Overview


It supports 4 outputs in total. It is packaged in SOIC for convenient transportation. Ready for shipping in Tape & Reel (TR) package. You can find 28 terminals of the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received lots of praise. The pinout of the rectifier regulator starts from 28 pins it has. It has a Surface Mount for mounting on PCB or other boards. Other Switching Regulator or Controllers like the voltage controller play a important role in the industry. Temperature lower than 0°C is not suitable for the it. Temperature higher than 70°C is not recommended. The variable voltage regulator speciallizes itself in certain areas along with ALSO CONTAINS 3 LINEAR CONTROLLERS.

ISL6524CB-T Features


SWITCHING CONTROLLER analog IC


ISL6524CB-T Applications


There are a lot of Intersil (Renesas Electronics America)
ISL6524CB-T Specialized Voltage Regulators applications.


  • Memory Termination Regulator for DDR, DDR2, DDR3, and Low Power DDR3/DDR4
  • Notebook/Desktop/Server
  • Telecom/Datacom
  • GSM Base Station
  • LCD-TV/PDP-TV
  • Copier/Printer
  • Set-Top Box
  • DDR Vooo and V? Voltage Generation
  • PC Dual Power Supply
  • Server DDR Power

User Guide
