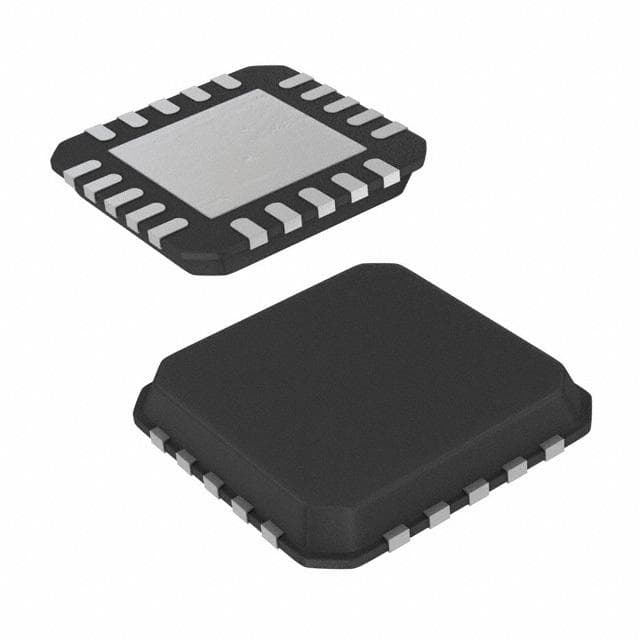

Renesas ISL6504ACR-T

Manufacturer No:

ISL6504ACR-T

Manufacturer:

Renesas

Package:

VQFN

Description:

5V 0.8mm PMIC 5V VQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6504ACR-T information

Renesas ISL6504ACR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6504ACR-T.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Packaging
Tape & Reel (TR)

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

JESD-30 Code
S-PQCC-N20

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
4

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Operating Supply Current
17mA

Adjustable Threshold
NO

Length
6mm

Height Seated (Max)
1mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6504ACR-T.

Datasheets:

intersil-isl6504acrt-datasheets-9578.pdf

intersil-isl6504acrt-datasheets-3459.pdf

ISL6504ACR-T Overview

Tape & Reel (TR) is the package in which it is packaged. As a result, it is packed in the VQFN package. This device contains an analog integrated circuit POWER SUPPLY SUPPORT CIRCUIT. There have been a total of 20 terminations for this system. It reaches its peak at 240. In total, 20 pins are present. The 5V supply voltage allows high efficiency. There are 4 channels that can be accessed. As part of Power Management Circuits, this device is present. In order for the device to work normally, the supply voltage (Vsup) should remain above 4.75V. It is set at 5.25V to be the maximum supply voltage. There is 17mA supply current supplied to it. Mounting is performed in accordance with the method of Surface Mount. In order for it to function, it needs power supplies that have a value of 5V. Temperatures less than 70°C are recommended for operation. Operating temperatures should be higher than 0°C.
