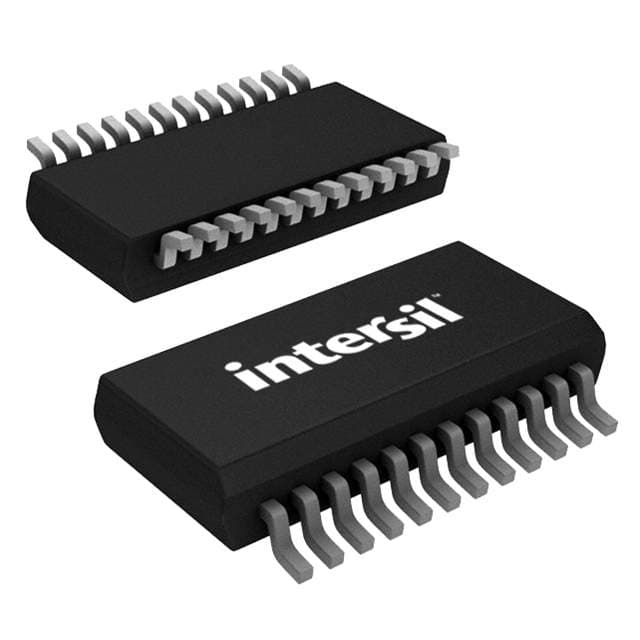

Renesas ISL6446AIAZ

Manufacturer No:

ISL6446AIAZ

Manufacturer:

Renesas

Package:

SSOP

Description:

PMIC 24 Pin SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6446AIAZ information

Renesas ISL6446AIAZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6446AIAZ.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
24

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Number of Outputs
3

Qualification Status
Not Qualified

Operating Supply Voltage
24V

Input Voltage-Nom
5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Max Supply Current
7.5mA

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
2.6MHz

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BUCK

Max Duty Cycle
95 %

Length
8.645mm

Height Seated (Max)
1.55mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6446AIAZ.

Datasheets:

intersil-isl6446aiaz-datasheets-7369.pdf

ISL6446AIAZ Overview

In order to facilitate voltage regulators' transportation, the harley voltage regulator is packaged in SSOP shape.There are a total of 3 outputs supported by the voltage regulator.A switching regulator such as this can be identified by its 24 terminals.There is one important fact to note, which is that pin 24 of the switching regulator is at the beginning of its pinout.The temperature must reach a peak of 260 before the relow soldering procedure can begin.24-pattern pins are used in this voltage regulator.It should be noted that other Switching Regulator or Controllers's, such as the voltage regulator DC to DC, play a vital role in this industry as well.A Surface Mount-slot is provided for mounting the board on a PCB or other board that requires mounting.It will not work at temperatures lower than -40°C.Use should not be recommended at temperatures higher than 85°C.

ISL6446AIAZ Features

3 outputs
Peak Reflow Temperature: 260

ISL6446AIAZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6446AIAZ Linear Regulator Controllers applications.

Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
Battery Operating Equipment
Adjustable Supplies
Switching Power Supplies
Error Amplifiers
Single Supply Amplifier
