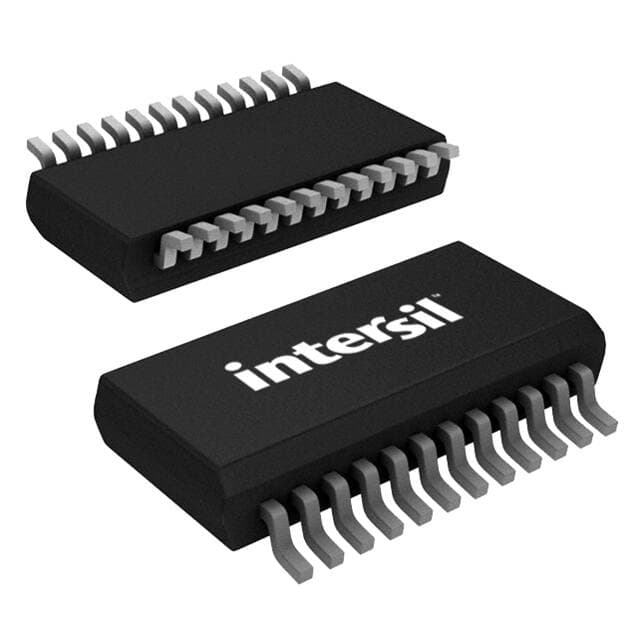

Renesas ISL6445IAZ-TK

Manufacturer No:

ISL6445IAZ-TK

Manufacturer:

Renesas

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

24 Terminals 5.6V~24V ISL6445 DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs 1.4MHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6445IAZ-TK information

Renesas ISL6445IAZ-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6445IAZ-TK.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-SSOP (0.154, 3.90mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
O/P VOLTAGE IS FROM 0.8V

Terminal Position
DUAL

Terminal Form
GULL WING

Terminal Pitch
0.635mm

Base Part Number
ISL6445

Function
Step-Down

Number of Outputs
2

Output Type
Transistor Driver

Input Voltage-Nom
12V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
5.6V~24V

Control Features
Enable, Phase Control, Power Good, Soft Start

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
1.4MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
PHASE-SHIFT

Duty Cycle (Max)
73%

Clock Sync
No

Length
8.645mm

Height Seated (Max)
1.75mm

Width
3.895mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6445IAZ-TK.

Datasheets:

renesaselectronicsamericainc-isl6445iaztk-datasheets-7480.pdf

ISL6445IAZ-TK Overview

With its 24-SSOP (0.154, 3.90mm Width) package, the switching controller fits the needs of most applications. For outputs of 2, this dc motor controller is suitable. Cut Tape (CT) solid enclosure protects the pmic. It is capable of handling Transistor Driver dc switching's outputs (s). This dc control operates at 5.6V~24V and has a 5.6V~24V supply voltage. Worked in a -40°C~85°C TA dc switcher before. In this switching controller, the switch can be set to 1.4MHz. The Surface Mount allows it to be used for dc dc regulator in general. In order to control switching efficiently, the dcdc regulator features Enable, Phase Control, Power Good, Soft Start. DUAL SWITCHING CONTROLLER analog IC connects the switch converters. Switching converters are designed with the terminal (s) at position DUAL . The 24 terminations can be used for a wide range of dc switching. A few of the control techniques these dc dc converter ics adapt include PULSE WIDTH MODULATION. A DC switcher's nominal voltage of 12V is input. Searching "ISL6445" will return other relevant dc to dc converter ics. Input voltage of dc dc voltage regulator should be 5.6V. This value is O/P VOLTAGE IS FROM 0.8V so that DC to DC voltage regulator better serves the purpose.
