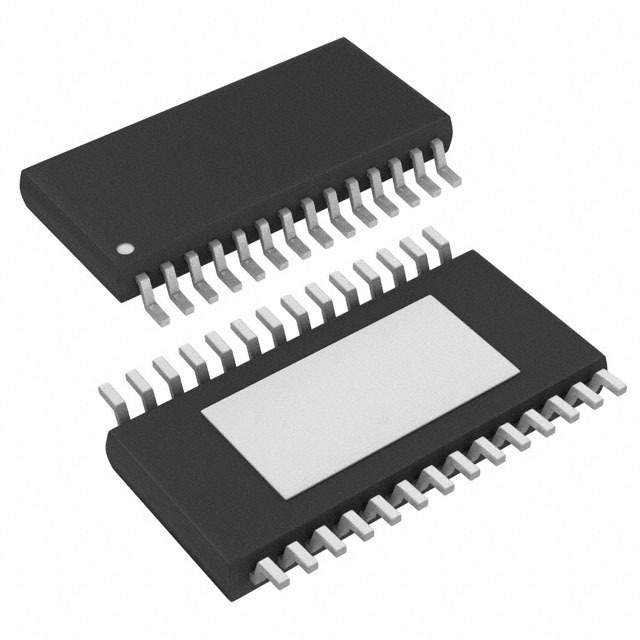

Renesas ISL6423BEVEZ

Manufacturer No:

ISL6423BEVEZ

Manufacturer:

Renesas

Package:

TSSOP

Description:

19.3V 260 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6423BEVEZ information

Renesas ISL6423BEVEZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6423BEVEZ.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
28

Published
2002

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-20°C

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

Number of Outputs
1

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL EXTENDED

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
19.3V

Input Voltage (Min)
8V

Control Mode
CURRENT-MODE

Output Current-Max
0.98A

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
8mA

Switcher Configuration
BOOST

Switching Frequency-Max
484kHz

Length
9.7mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6423BEVEZ.

Datasheets:

intersil-isl6423bevez-datasheets-4956.pdf

ISL6423BEVEZ Overview

Currently, it supports a total of 1 outputs. The rectifier regulator is packaged in TSSOP in order to facilitate transportation. There is a general voltage output of 19.3Von this voltage controller. Electronic components have 28 terminals. As a SWITCHING CONTROLLER regulator, the electronic part has received high ratings. This alternator regulator has a pinout starting from 28 pins. A Surface Mount is provided for mounting it on PCBs and other boards. The power supply regulator has a pin count of 28. The AC voltage regulator is one example of how other Power Management Circuits play a critical role in the industry. A temperature lower than -20°Cis not suitable for the shunt regulator. There is no need to exceed 85°C in terms of temperature. As the power supply regulator is supplied with a 12V voltage, it is capable of completing a variety of demanding tasks. Current 0.98A is specified as its maximum output.
