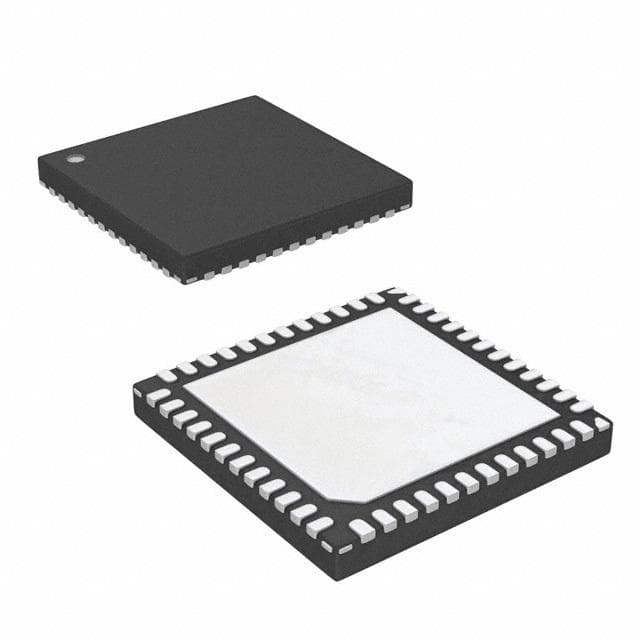

Renesas ISL6336IRZ

Manufacturer No:

ISL6336IRZ

Manufacturer:

Renesas

Package:

QFN

Description:

1.6V 260 Cel QUAD Specialized Voltage Regulator 48 Pins 48 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6336IRZ information

Renesas ISL6336IRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6336IRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
48

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES IN CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
48

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
200A

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Length
7mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6336IRZ.

Datasheets:

intersil-isl6336irz-datasheets-4874.pdf

ISL6336IRZ Overview

It supports 1 outputs in total. It is packaged in QFN for convenient transportation. This power supply regulator has a general volatge output of 1.6V. You can find 48 terminals of the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received lots of praise. The pinout of the rectifier regulator starts from 48 pins it has. It has a Surface Mount for mounting on PCB or other boards. The power regulator has 48 pins. Other Switching Regulator or Controllers like the voltage controller play a important role in the industry. Temperature lower than -40°C is not suitable for the it. Temperature higher than 85°C is not recommended. Normal operation requires 5V operating supply voltage. The variable voltage regulator speciallizes itself in certain areas along with ALSO OPERATES IN CURRENT MODE. This AC voltage regulator comes in a 1MHz switching frequency.

ISL6336IRZ Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1MHz

ISL6336IRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6336IRZ Specialized Voltage Regulators applications.

Memory Termination Regulator for DDR, DDR2, DDR3, and Low Power DDR3/DDR4
Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
