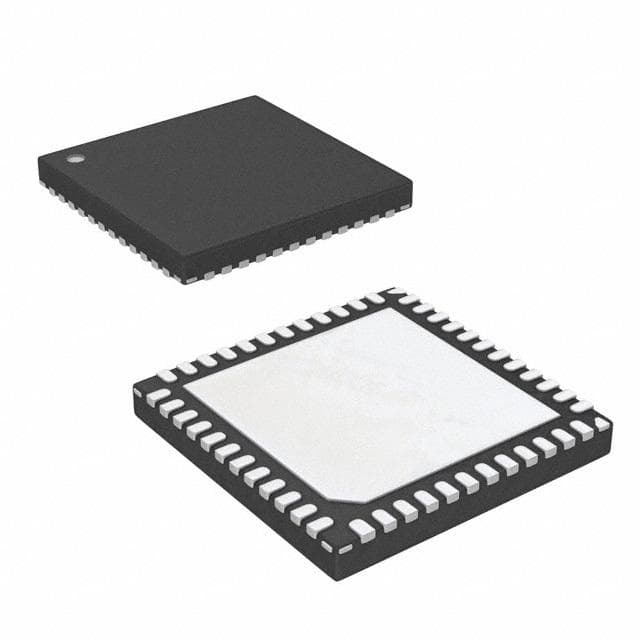

Renesas ISL6323CRZ-T

Manufacturer No:

ISL6323CRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

2V 260 Cel QUAD Specialized Voltage Regulator 48 Pins 48 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6323CRZ-T information

Renesas ISL6323CRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6323CRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
48

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
48

Number of Outputs
2

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Current - Output
120A

Voltage - Output
2V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
1000kHz

Length
7mm

Height Seated (Max)
1mm

Width
7mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6323CRZ-T.

Datasheets:

intersil-isl6323crzt-datasheets-3439.pdf

ISL6323CRZ-T Overview

Currently, it supports a total of 2 outputs. The rectifier regulator is packaged in QFN in order to facilitate transportation. There is a general voltage output of 2Von this voltage controller. Electronic components have 48 terminals. As a DUAL SWITCHING CONTROLLER regulator, the electronic part has received high ratings. This alternator regulator has a pinout starting from 48 pins. A Surface Mount is provided for mounting it on PCBs and other boards. The power supply regulator has a pin count of 48. The AC voltage regulator is one example of how other Switching Regulator or Controllers play a critical role in the industry. A temperature lower than 0°Cis not suitable for the shunt regulator. There is no need to exceed 70°C in terms of temperature. In order to operate normally, a supply voltage of 5V is required.

ISL6323CRZ-T Features

DUAL SWITCHING CONTROLLER analog IC
Supply voltage: 5V

ISL6323CRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6323CRZ-T Specialized Voltage Regulators applications.

Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
