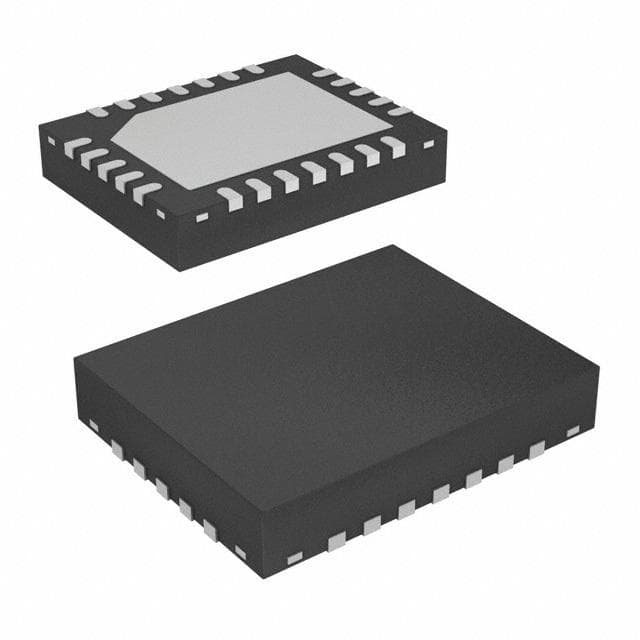

Renesas ISL6315CRZ-T

Manufacturer No:

ISL6315CRZ-T

Manufacturer:

Renesas

Package:

QFN EP

Description:

24 Terminals 24-Pin DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6315CRZ-T information

Renesas ISL6315CRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6315CRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN EP

Number of Pins
24

Packaging
Tape & Reel

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Number of Outputs
2

Operating Supply Voltage
12V

Input Voltage-Nom
5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Current - Output
80A

Frequency (Max)
255kHz

Voltage - Output
1.6V

Input Voltage (Min)
4.75V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Duty Cycle (Max)
67 %

Length
4mm

Height Seated (Max)
1mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6315CRZ-T.

Datasheets:

intersil-isl6315crzt-datasheets-2165.pdf

ISL6315CRZ-T Overview

Capsuled in the QFN EP package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 2 outputs. The pmic is packaged in Tape & Reel solid enclosure. The switch converters are connected to a DUAL SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the QUAD position. 24 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 5V nominal DC switcher's voltage input. Switching converter has a total of 24 pins. Switching converter is a type of Switching Regulator or Controllers in particular. The minimum input voltage of the dc dc voltage regulator should be 4.75V. DC switcher's Surface Mount makes it qualified for most application and prototype designs. DC switcher'sIt is suggested that users apply 12V to the voltage regulator dc to dc in order to run it safely and reliably in a circuit. DC regulator should be kept at a temperature of 0°C or higher. DC regulator should run at a temperature of 70°C more than 70°C degrees Celsius. The switch converters have 1 function (s) in total. The dc switching comes with 24 pins set. The controller can switch at the maximum frequency of 255kHz. It is ideal for switching controllers with 80A input. Normally, it outputs a value of 1.6V.

ISL6315CRZ-T Features

PULSE WIDTH MODULATION

ISL6315CRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6315CRZ-T DC to DC converter applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
