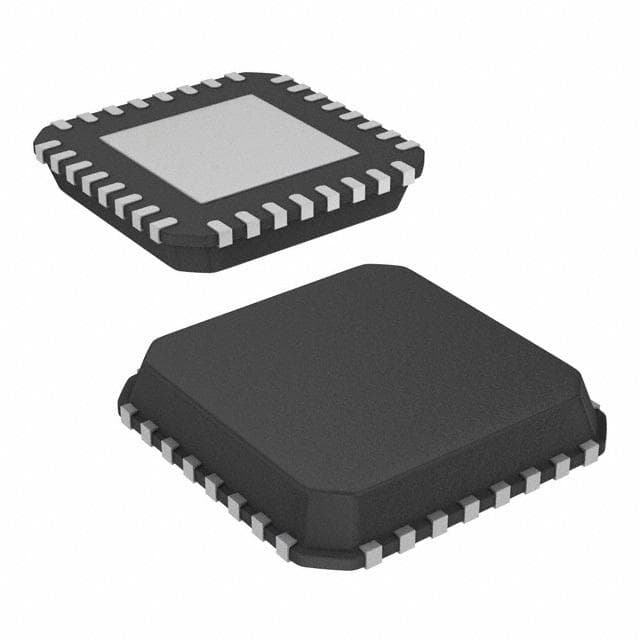

Renesas ISL6310CRZ

Manufacturer No:

ISL6310CRZ

Manufacturer:

Renesas

Package:

QFN

Description:

2.3V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6310CRZ information

Renesas ISL6310CRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6310CRZ.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Technology
MOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Number of Outputs
1

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Output
2.3V

Input Voltage (Min)
4.75V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Length
5mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6310CRZ.

Datasheets:

intersil-isl6310crz-datasheets-3558.pdf

ISL6310CRZ Overview

A total of 1outputs are supported by this voltage regulator. The rectifier regulator is packaged in QFN to facilitate transportation. An output voltage of 2.3V is provided by this power supply regulator. There are 32terminals on the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received high praise. Pinouts for the rectifier regulator begin at 32. There is a Surface Mount on the board for mounting to a PCB or other board. 32pins are present on the power regulators. The voltage controller plays an important role in the industry, as do other Switching Regulator or Controllers. Temperatures below 0°Care not suitable for the shunt regulator. A temperature higher than 70°Cshould not be used.

ISL6310CRZ Features

SWITCHING CONTROLLER analog IC

ISL6310CRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6310CRZ Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
