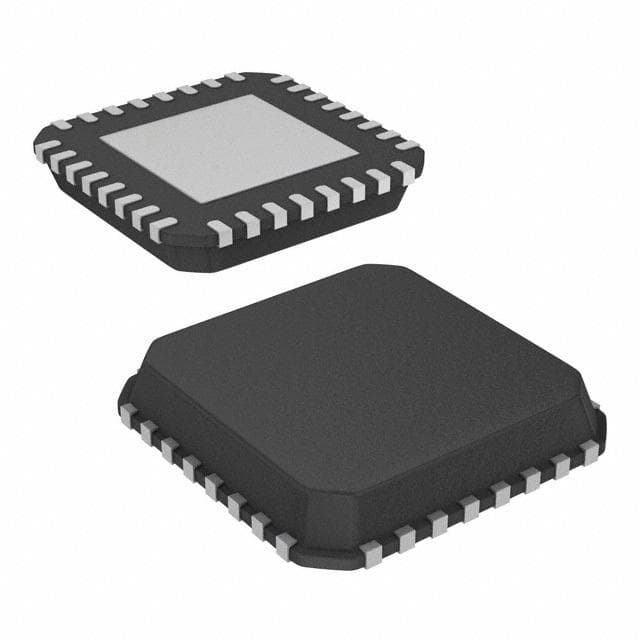

Renesas ISL62382CHRTZ

Manufacturer No:

ISL62382CHRTZ

Manufacturer:

Renesas

Package:

Description:

0.5mm PMIC 32 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL62382CHRTZ information

Renesas ISL62382CHRTZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL62382CHRTZ.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

Additional Feature
ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 5V

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Qualification Status
Not Qualified

Output Voltage
5V

Input Voltage-Nom
12V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Operating Supply Current
150?A

Current - Output
100mA

Voltage - Output
5.5V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
600kHz

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL62382CHRTZ.

Datasheets:

intersil-isl62382chrtz-datasheets-7998.pdf

ISL62382CHRTZ Overview

There is an analog IC DUAL SWITCHING CONTROLLER in this device. The terminations total 32. There is a peak temperature of NOT SPECIFIED during reflow. The device has 32 pins in total. It is a part of Switching Regulator or Controllers. The device is designed with 32 pins. It is powered by a supply current of 150?A. The method of Surface Mount is used to mount it. Based on the functional requirements, a nominal input voltage of 12V is specified. At 5V, the output voltage remains constant. ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 5V is also a feature of it. Operating temperatures are below 100°C. Ideally, the operating temperature should be greater than -10°C. This device has a maximum switching frequency of 600kHz.
