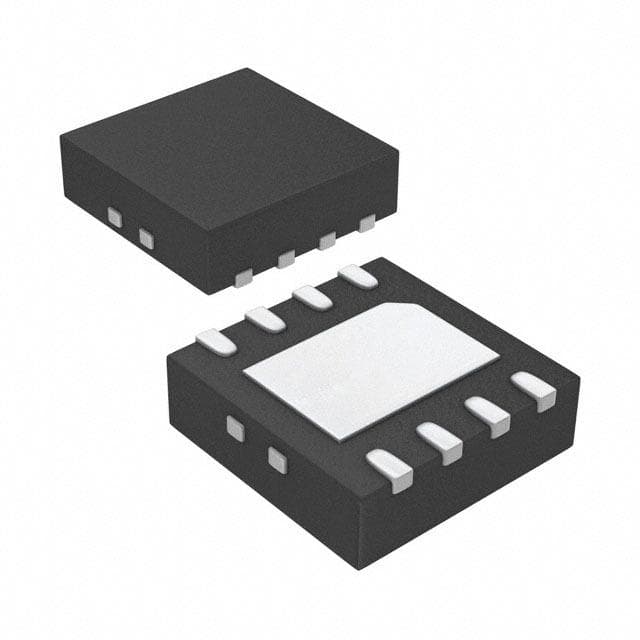

Renesas ISL6146CFRZ

Manufacturer No:

ISL6146CFRZ

Manufacturer:

Renesas

Package:

DFN

Description:

0.65mm PMIC 12V DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6146CFRZ information

Renesas ISL6146CFRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6146CFRZ.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
DFN

Weight
37.393021mg

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8, 8

JESD-30 Code
S-PDSO-N8

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
20V

Operating Supply Current
25?A

Turn-Off Delay Time
65 ns

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

Number of Drivers
1

High Side Driver
NO

Height
950?m

Length
3mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6146CFRZ.

Datasheets:

intersil-isl6146cfrz-datasheets-6680.pdf

intersil-isl6146cfrz-datasheets-7558.pdf

ISL6146CFRZ Overview

There is a DFN case that comes with it. 8 terminations are available in the part in order to meet your needs. There are 8, 8 pins on the board and it is designed with them. Powered by 12V, it is capable of delivering its performance to its customers. For the purpose of running 260, this part's peak reflow temperature is utilized. A supply current of 25?A is used to operate the device when it is in operation. In order to mount the part properly, it is recommended to mount it by Surface Mount. It is recommended that the part be used when the temperature is above -40°C. You should use temperatures below 125°C for this part. An IC with BUFFER OR INVERTER BASED MOSFET DRIVER interface can be classified in a number of ways.

ISL6146CFRZ Features

in a DFN case
8 terminations
Peak Reflow Temperature (Cel) : 260

ISL6146CFRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6146CFRZ Ideal Diode controller applications.

Active OR-ing of Redundant (N+1) Power Supplies
Automotive battery protection
ADAS domain controller
Camera ECU
Head Unit
USB HUBs
Active ORing for redundant power
Factory automation and control - PLC digital output modules
Industrial motor drives
Industrial transport
