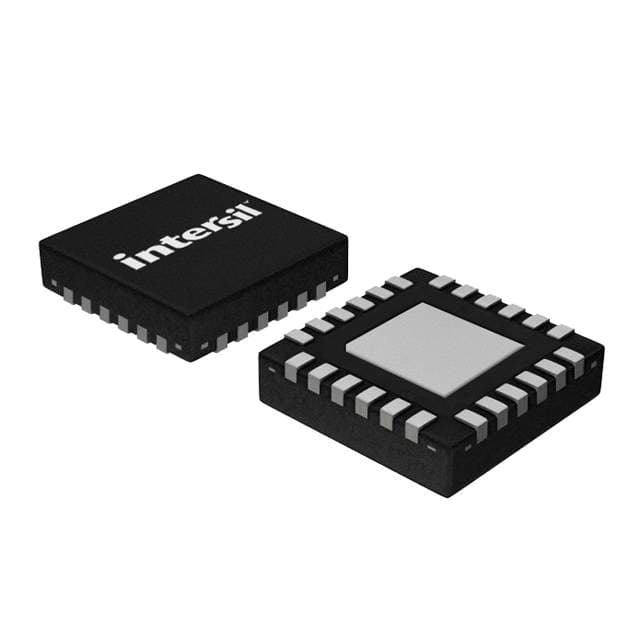

Renesas ISL6131IRZA

Manufacturer No:

ISL6131IRZA

Manufacturer:

Renesas

Package:

VQFN

Description:

3.3V 24 Terminals 24-Pin Voltage supervisor 4 Channels Min 1.5V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6131IRZA information

Renesas ISL6131IRZA technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6131IRZA.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Number of Pins
24

Packaging
Bulk

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Type
Multi-Voltage Supervisor

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Power Supplies
1.5/5V

Number of Channels
4

Max Supply Voltage
5.5V

Min Supply Voltage
1.5V

Operating Supply Current
170?A

Adjustable Threshold
YES

Reset
Active Low

Number of Voltages Monitored
4

Min Reset Threshold Voltage
700mV

Undervoltage Threshold
700mV

Height Seated (Max)
1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6131IRZA.

Datasheets:

intersil-isl6131irza-datasheets-9428.pdf

ISL6131IRZA Overview
