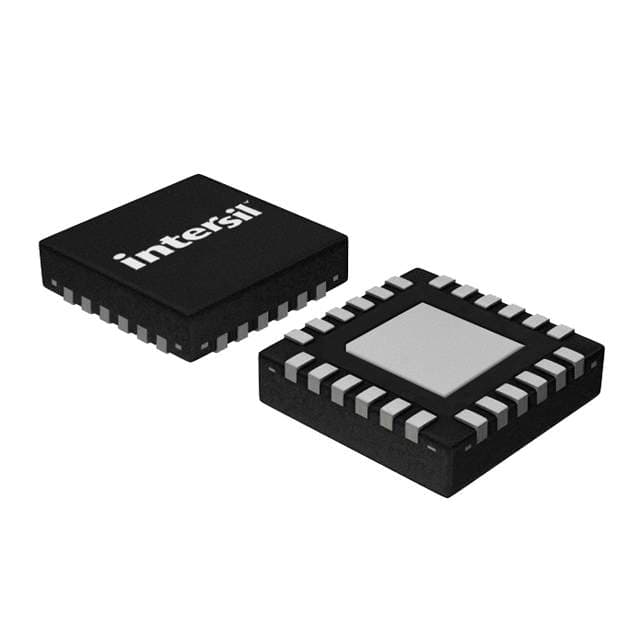

Renesas ISL6128IR

Manufacturer No:

ISL6128IR

Manufacturer:

Renesas

Package:

QFN

Description:

1.5/5V 0.5mm PMIC 3.3V QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6128IR information

Renesas ISL6128IR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6128IR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Published
2006

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

JESD-30 Code
S-PQCC-N24

Qualification Status
Not Qualified

Power Supplies
1.5/5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.5V

Number of Channels
2

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Operating Supply Current
200?A

Adjustable Threshold
YES

Supply Current-Max (Isup)
0.5mA

Length
4mm

Height Seated (Max)
1mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6128IR.

Datasheets:

intersil-isl6128ir-datasheets-3002.pdf

intersil-isl6128ir-datasheets-6187.pdf

ISL6128IR Overview

Due to its small size, it is included in the QFN package. This device has an analog IC POWER SUPPLY SUPPORT CIRCUIT. There are a total of 24 terminations. During reflow, the temperature peaks at 240. The pin count is 24. It is possible to achieve high efficiency on a 3.3V supply voltage. There are not any channels that can be accessed at the moment. In Power Management Circuits, this device belongs. If the power supply (Vsup) is to operate normally, it must be above 1.5V. 5V is set as the maximum supply voltage. For powering this DC DC switching regulator, a supply current of 200?A is used. In accordance with Surface Mount, it is mounted. Using 1.5/5V power supplies, it gets its energy. A maximum current of 0.5mA is available from the supply. A temperature of less than 85°C should be used for operation. In order to operate, the temperature should be higher than -40°C.
