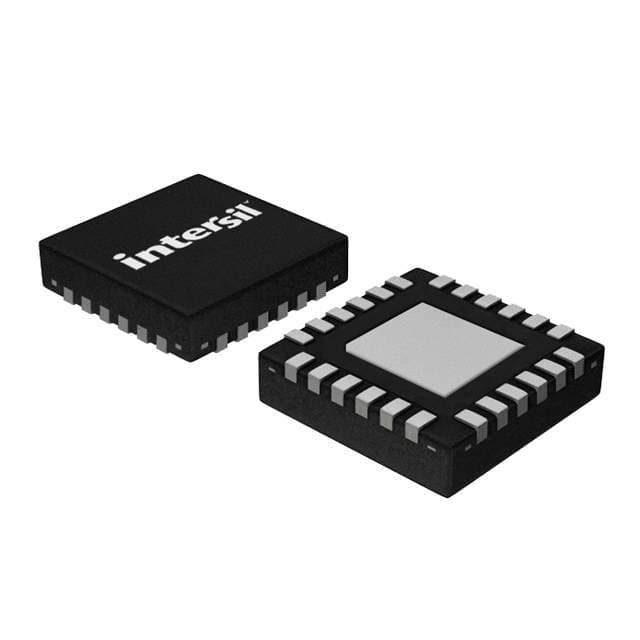

Renesas ISL6125IRZA-T
Manufacturer No:
ISL6125IRZA-T
Manufacturer:
Package:
QFN EP
Description:
3.3V 24 Terminals 24-Pin Voltage supervisor 4 Channels Min 1.5V Max 5.5V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL6125IRZA-T information
Renesas ISL6125IRZA-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6125IRZA-T.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- QFN EP
- Number of Pins
- 24
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 24
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Power Management Circuits
- Terminal Position
- QUAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 24
- Temperature Grade
- INDUSTRIAL
- Number of Channels
- 4
- Max Supply Voltage
- 5.5V
- Analog IC - Other Type
- POWER SUPPLY SUPPORT CIRCUIT
- Operating Supply Current
- 200μA
- Max Supply Current
- 500μA
- Adjustable Threshold
- YES
- Voltage - Threshold
- 5V
- Min Reset Threshold Voltage
- 700mV
- Max Reset Threshold Voltage
- 5V
- Undervoltage Threshold
- 700mV
- Overvoltage Threshold
- 5V
- Number of Monitored Inputs
- 4
- Height Seated (Max)
- 1mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas ISL6125IRZA-T.
ISL6125IRZA-T Overview
This voltage supervisor has a total of 24 mounting terminals that can be used for mounting. Please find attached 1 functions for your reference in this IC power. Power management consists of 4 channels, each of which can be used independently. Please find attached QFN EP functions for your reference in this IC power. Specifies a reflow peak temperature of 260 for the package during reflow. IC management conducts at a voltage of 3.3V. By Surface Mount, IC management has been mounted. A IC power such as this can be classified as a Power Management Circuits power management system. 24 pins are present in total in this power management. 24 pins are on the supervisor. It is recommended that Vsup should not be less than 1.5V for this IC power. The maximum supply voltage (Vsup) is not to exceed 5.5V volts in this IC management. The power management's supply current is 200μA. In addition to the IC type POWER SUPPLY SUPPORT CIRCUIT, other types are also included in the power managment ic. A maximum supply temperature of 500μA can be used. On the power management, 4 inputs are monitored.
