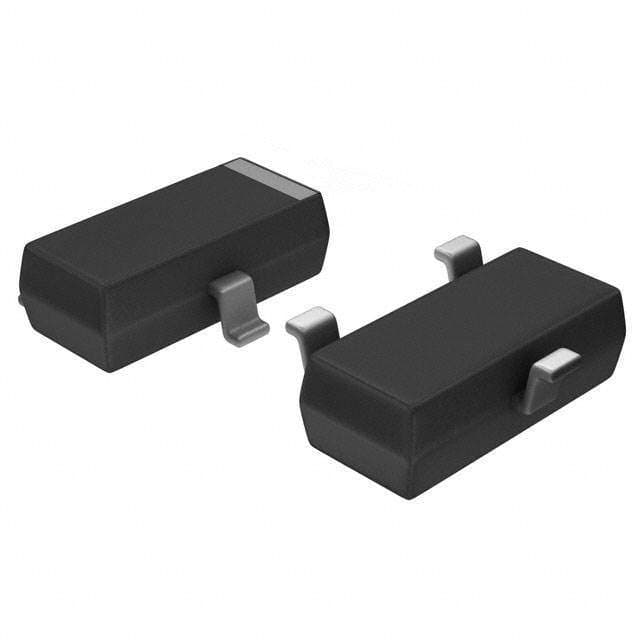

Renesas ISL60002DIH312-TK

Manufacturer No:

ISL60002DIH312-TK

Manufacturer:

Renesas

Package:

TO-236-3

Description:

0.95mm PMIC 1 Channel 3V TO-236-3

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL60002DIH312-TK information

Renesas ISL60002DIH312-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL60002DIH312-TK.

Type
Parameter

Mount
Surface Mount

Package / Case
TO-236-3

Number of Pins
3

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
20 ppm/°C

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Voltage References

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.95mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
1.25V

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.7V

Number of Channels
1

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Current - Output
7mA

Quiescent Current
900nA

Voltage - Output
1.25V

Reference Type
Series

Length
2.92mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL60002DIH312-TK.

Datasheets:

intersil-isl60002dih312tk-datasheets-2853.pdf

ISL60002DIH312-TK Overview

There is a handy package TO-236-3 used in this program.Series control is used to control the part as a voltage reference.An external package of Tape & Reel (TR) encloses the voltage reference ic.Terminations with various functions 3.An analog IC THREE TERMINAL VOLTAGE REFERENCE is coupled to the voltage reference ic.The output voltage 1.25V is determined by test statistics.The output should be 1.It contains 3 pins.The temperature should not rise above 240 during reflow soldering.Pins 3 are settled in the part.It can be used in a variety of applications due to its Voltage References type.It is able to handle 7mA input applications.Applicable to Surface Mount applications.It is possible to communicate at high quality through 1 channels.Voltage 3V is required.For it to work, it requires a voltage of 2.7V volts.85°C more than 85°C should be the ambient temperature for it to operate.It is capable of operating at temperatures as low as -40°C degrees Celsius.1.25V volts are output.As soon as a part is idle, it uses 900nA.

ISL60002DIH312-TK Features

THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 240
Channel Number: 1

ISL60002DIH312-TK Applications

There are a lot of Intersil (Renesas Electronics America)
ISL60002DIH312-TK Voltage Reference applications.

Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
