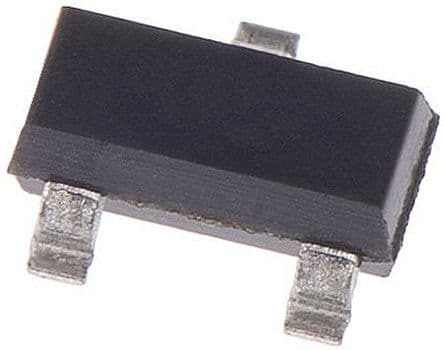

Renesas ISL60002BIH320Z-TK

Manufacturer No:

ISL60002BIH320Z-TK

Manufacturer:

Renesas

Package:

SOT-23

Description:

Fixed 0.95mm PMIC 1 Channel 3V SOT-23

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL60002BIH320Z-TK information

Renesas ISL60002BIH320Z-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL60002BIH320Z-TK.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23

Number of Pins
3

Packaging
Digi-Reel®

Published
2004

Tolerance
0.05%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
20 ppm/°C

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Voltage References

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
40

Number of Outputs
1

Output Voltage
2.048V

Output Type
Fixed

Max Output Current
7mA

Temperature Grade
INDUSTRIAL

Number of Channels
1

Trim/Adjustable Output
NO

Max Supply Voltage
5.5V

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
900nA

Max Supply Current
900nA

Current - Output
7mA

Quiescent Current
900nA

Voltage - Output
2.048V

Min Input Voltage
2.7V

Max Input Voltage
6.5V

Reference Type
Fixed, Series

Min Output Voltage
2.048V

Voltage Reference
2.048V

Height
940?m

Length
3.04mm

Width
1.4mm

REACH SVHC
Unknown

Download datasheets and manufacturer documentation for Renesas ISL60002BIH320Z-TK.

Datasheets:

intersil-isl60002bih320ztk-datasheets-2058.pdf

ISL60002BIH320Z-TK Overview

The reference voltage makes use of a handy SOT-23 package.This program utilizes the handy Fixed, Series package.The reference voltage is enclosed in the Digi-Reel® external packaging.3 terminations with various functions.0.05% tolerance for precise voltage reference.THREE TERMINAL VOLTAGE REFERENCE analog IC is coupled with the reference voltage.It outputs 2.048V voltage according to the test statistics.It is sufficient to generate 1 outputs. It can handle Fixed output (s).The voltage reference ic includes 3 pins.Reflow soldering should be performed at a temperature of 260.3 pins are settled in the voltage reference ic.As a type of Voltage References, the voltage reference circuit is used in various applications.It is suitable for 7mA input applications.It is appropriate for Surface Mount applications.You cannot expect output current higher greater than 7mA from the reference voltage.There are 1 channels for high-quality communication.The lowest voltage output from the voltage reference ic is 2.048V lower than 2.048V.Since the max input voltage of the part is 6.5V, users ought to confine the voltage correspondingly.It requires a 3V supply voltage.It should operate with ambient temperature 85°C higher than 85°C.It can operate at temperatures as low as -40°C degrees Celsius.Outputs 2.048V voltage.The voltage reference circuit uses 900nA when it is idle.It runs on 900nA supply current.Does the voltage reference ic contain Substances of Very High Concern (SVHC)? The answer is Unknown.The record shows, it requires 2.7V voltage at least to get the voltage reference ic run.Currents greater than 900nA may result in improper operation and potentially part damage.The voltage reference ic provides 2.048V voltage reference.In terms of maximum supply voltage, it is rated 5.5V.

ISL60002BIH320Z-TK Features

0.05% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1
Max Output Voltage: 6.5V
Voltage Reference: 2.048V

ISL60002BIH320Z-TK Applications

There are a lot of Intersil (Renesas Electronics America)
ISL60002BIH320Z-TK Voltage Reference applications.

Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
