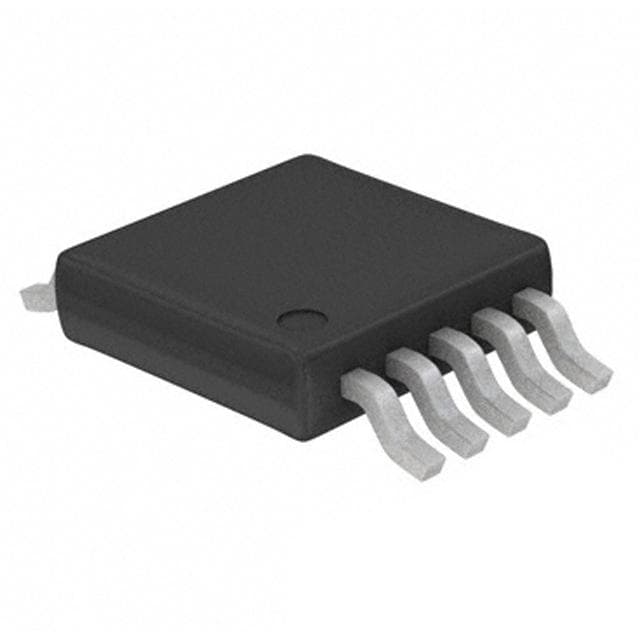

Renesas ISL59421IU

Manufacturer No:

ISL59421IU

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 180mA per Channel Instrumentational OP Amps 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL59421IU information

Renesas ISL59421IU technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL59421IU.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Packaging
Bulk

Published
2005

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Multiplexer or Switches

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
10

Qualification Status
Not Qualified

Operating Temperature (Min)
-40°C

Power Supplies
+-5V

Temperature Grade
AUTOMOTIVE

Number of Circuits
1

Analog IC - Other Type
VIDEO MULTIPLEXER

Operating Supply Current
14.5mA

Throw Configuration
DPST

Slew Rate
2008 V/μs

Output Current per Channel
180mA

Neg Supply Voltage-Nom (Vsup)
-5V

-3db Bandwidth
865MHz

Off-state Isolation-Nom
75 dB

Length
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL59421IU.

ISL59421IU Overview

In the package, you will find a MSOP-case to contain the op amp ic. A Bulk case is used for delivering the op amp. During the past two weeks, there have been close to 10 terminations. A total of 10 pins are located on this board. This linear amplifier should be powered by an 5V battery. This particular linear amplifier is a type of Multiplexer or Switches device, to be precise. The op amp ic has an array of 10 pins on it. Using an 14.5mA supply current, this operational amplifier ics can be operated. A instrumentation amplifier like this has 1 circuits. On the buffer amps, there are 2 channels that can be used. In this linear amplifier, there is also an analog IC called a VIDEO MULTIPLEXER.
