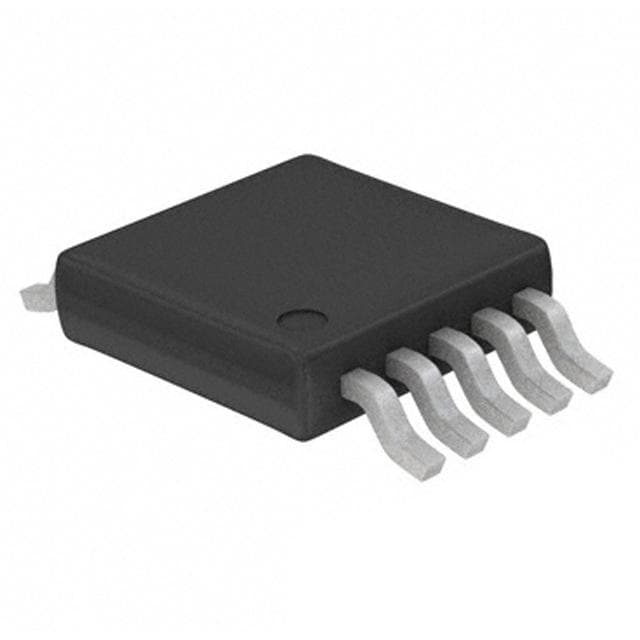

Renesas ISL59420IU-T7

Manufacturer No:

ISL59420IU-T7

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 130mA per Channel Instrumentational OP Amps 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL59420IU-T7 information

Renesas ISL59420IU-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL59420IU-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Published
2005

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Multiplexer or Switches

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
10

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
+-5V

Temperature Grade
INDUSTRIAL

Number of Channels
2

Analog IC - Other Type
VIDEO MULTIPLEXER

Operating Supply Current
11mA

Throw Configuration
DPST

Slew Rate
1462 V/μs

Output Current per Channel
130mA

Neg Supply Voltage-Nom (Vsup)
-5V

-3db Bandwidth
420MHz

Off-state Isolation-Nom
75 dB

Length
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL59420IU-T7.

ISL59420IU-T7 Overview

There is a MSOP case package that contains the instrumentation amplifiers. We are approaching the 10h termination of the year. In total, there are 10 pins on this op amp ic. This linear amplifier should be powered by an 5V battery. There are two types of Multiplexer or Switches op amps in this case, and this device falls into one of them. 10 pins are located on the operational amplifiers. The buffer amplifier is capable of operating from a supply current of 11mA . This op amp contains 1 circuits. On the buffer amps, there are 2 channels that can be used. An analog IC known as VIDEO MULTIPLEXER is also used in this linear amplifier.
