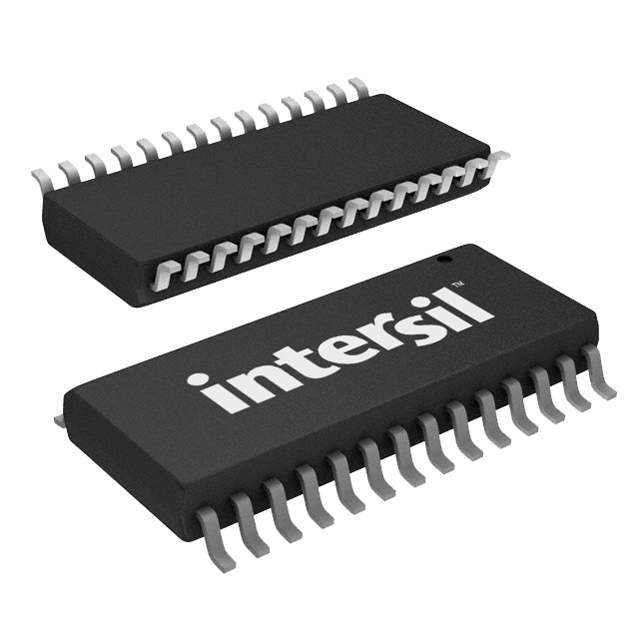

Renesas ISL5761IB

Manufacturer No:

ISL5761IB

Manufacturer:

Renesas

Package:

SOIC

Description:

DAC 7.5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL5761IB information

Renesas ISL5761IB technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL5761IB.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Converters

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Interface
Parallel

Number of Bits
10

Converter Type
D/A CONVERTER

Supply Type
Single

Sampling Rate
150 Msps

Settling Time
0.035 ?s

Linearity Error-Max (EL)
0.0488%

Input Bit Code
BINARY

Number of Converters
1

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL5761IB.

Datasheets:

intersil-isl5761ib-datasheets-3002.pdf

ISL5761IB Overview

As part of the SOIC package, it is included. It is powered from a supply voltage of 3.3V. The Other Converters family of FPGA parts includes this part. There are a total of 28 terminations. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. An external power supply of 3.3V is required to power the device. There is a maximum operating temperature of 85°C for this module. It is recommended that the operating temperature be higher than -40°C. There are a total of 28 pins on this device.

ISL5761IB Features

SOIC package
28 pin count

ISL5761IB Applications

There are a lot of Intersil (Renesas Electronics America)
ISL5761IB Digital to Analog Converters (DAC) applications.

Video Encoder
Display Electronics
Data Acquisition Systems
Calibration
Motor Control
Data Distribution System
Digital Potentiometer
Software Radio
Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
