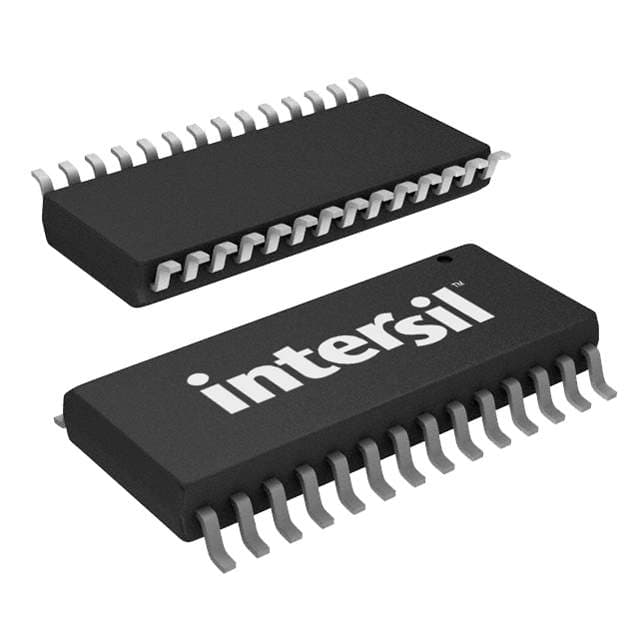

Renesas ISL5761/2IBZ

Manufacturer No:

ISL5761/2IBZ

Manufacturer:

Renesas

Package:

SOIC

Description:

DAC 1.25 B B 7.5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL5761/2IBZ information

Renesas ISL5761/2IBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL5761/2IBZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
28

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Converters

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
40

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Interface
Parallel

Number of Bits
10

Supply Type
Single

Resolution
1.25 B

Sampling Rate
250 Msps

Linearity Error-Max (EL)
0.0488%

Integral Nonlinearity (INL)
0.5 LSB

Input Bit Code
BINARY

Number of Converters
1

Conversion Rate
250 Msps

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL5761/2IBZ.

Datasheets:

intersil-isl57612ibz-datasheets-1974.pdf

ISL5761/2IBZ Overview

This package is included in the SOIC package and is available for purchase. 3.3V volts power it. The Other Converters family of FPGAs includes this part. The total number of terminations is 28. The device is designed with 28 pins in total. It is possible for this FPGA to perform as per its specifications as long as it is mounted in Surface Mount direction. It is powered by a 3.3V battery, which can be purchased separately. In this module, 85°C is the maximum operating temperature at which it can operate. Over -40°C, the operating temperature should be higher.

ISL5761/2IBZ Features

SOIC package
28 pins

ISL5761/2IBZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL5761/2IBZ Digital to Analog Converters (DAC) applications.

Motor Control
Data Distribution System
Digital Potentiometer
Software Radio
Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
Wideband communications:
LMDS/MMDS, point-to-point
Instrumentation:
RF signal generators, arbitrary waveform generators
