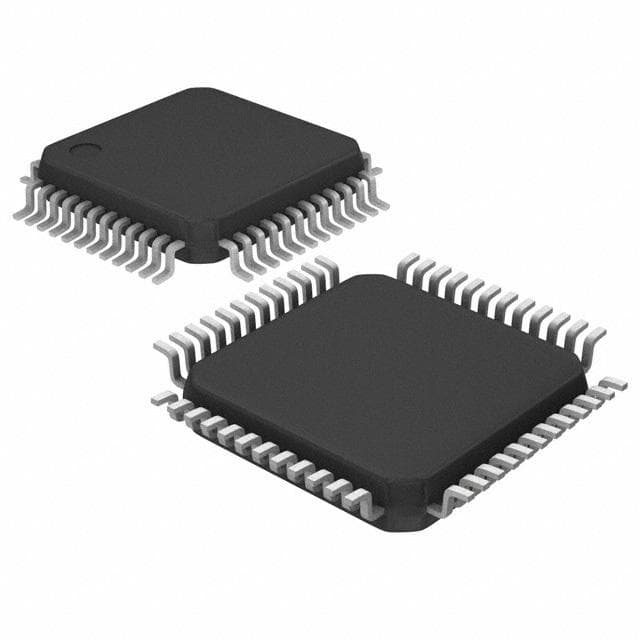

Renesas ISL5729/2IN

Manufacturer No:

ISL5729/2IN

Manufacturer:

Renesas

Package:

Description:

DAC 7mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL5729/2IN information

Renesas ISL5729/2IN technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL5729/2IN.

Type
Parameter

Surface Mount
YES

Packaging
Bulk

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
48

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Other Converters

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
48

JESD-30 Code
S-PQFP-G48

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Number of Bits
10

Converter Type
D/A CONVERTER

Linearity Error-Max (EL)
0.0488%

Input Bit Code
OFFSET BINARY

Number of Converters
2

Analog Output Voltage-Min
-1V

Length
7mm

Height Seated (Max)
1.6mm

Width
7mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL5729/2IN.

Datasheets:

intersil-isl57292in-datasheets-8465.pdf

ISL5729/2IN Overview

The supply voltage is 3.3V volts. In this case, the FPGA part belongs to the Other Converters family. There is an FPGA model contained in Bulk in order to conserve space. In total, it has 48 terminations on each end. The device runs on a 3.3V battery and requires no additional power supply to operate. This device has a pin count of 48 in it. As a rule of thumb, the operating temperature should not exceed 85°C. There should be no less than a -40°C operating temperature in the machine.

ISL5729/2IN Features

48 pin count

ISL5729/2IN Applications

There are a lot of Intersil (Renesas Electronics America)
ISL5729/2IN Digital to Analog Converters (DAC) applications.

Digital Potentiometer
Software Radio
Wireless infrastructure:
WCDMA, CDMA2000, TD-SCDMA, WiMAX
Wideband communications:
LMDS/MMDS, point-to-point
Instrumentation:
RF signal generators, arbitrary waveform generators
Mobile Communications
Process Control and Industrial Automation
