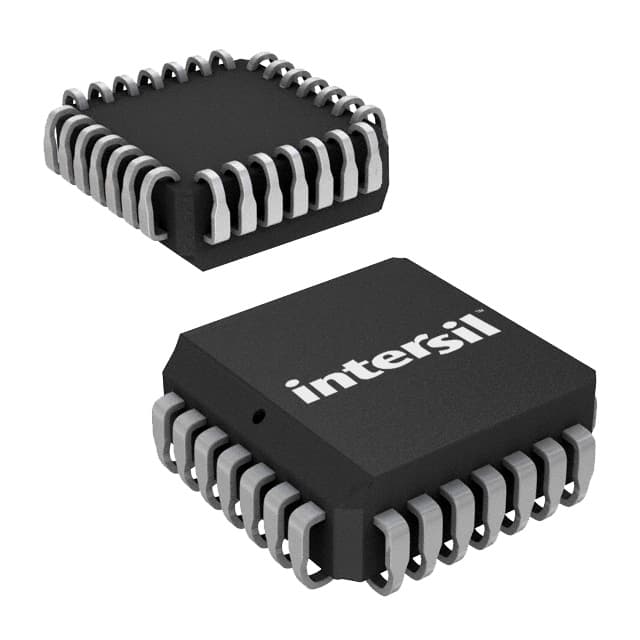

Renesas ISL5586DIMZ

Manufacturer No:

ISL5586DIMZ

Manufacturer:

Renesas

Package:

LCC

Description:

28 Terminations Telecom device 1 Circuits 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL5586DIMZ information

Renesas ISL5586DIMZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL5586DIMZ.

Type
Parameter

Mount
Surface Mount

Package / Case
LCC

Packaging
Bulk

Published
2000

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Analog Transmission Interfaces

Technology
BIPOLAR

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

JESD-30 Code
S-PQCC-J28

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Operating Supply Current
5mA

Telecom IC Type
SLIC

Battery Feed
CONSTANT CURRENT/RESISTIVE

Hybrid
2-4 CONVERSION

Height Seated (Max)
4.57mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL5586DIMZ.

Datasheets:

intersil-isl5586dimz-datasheets-2978.pdf

ISL5586DIMZ Overview

A LCC package is used to reduce board space requirements.A Bulk-packing method is used to pack telecommunications equipment.Telecom circuit is made up of 1 circuits.The mounting is in the way of Surface Mount.Configuration of this telecom circuit has 28 terminations.There is a voltage supply called 5V that it uses.The type of telecom IC it uses is SLIC.In addition to providing many benefits for designers, it operates using 5mA as a supply current.The telecommunications device is part of the Analog Transmission Interfaces subcategory.Temperature should be set at the minimum value of -40°C to ensure normal operation.85°C is set to the maximum value to ensure normal operation.While designing, telecommunications device has 1 functions configured.Its pin configuration is determined by 28 telecom product pins.

ISL5586DIMZ Features

Available in the LCC package
SLIC as telecom IC type
Operating supply current of 5mA

ISL5586DIMZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL5586DIMZ Telecom applications.

Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
ISDN Primary Rate Interfaces (PRA)
PBXs channel bank
PCM channel bank
T3 channelized access concentrators
M13 MUX
