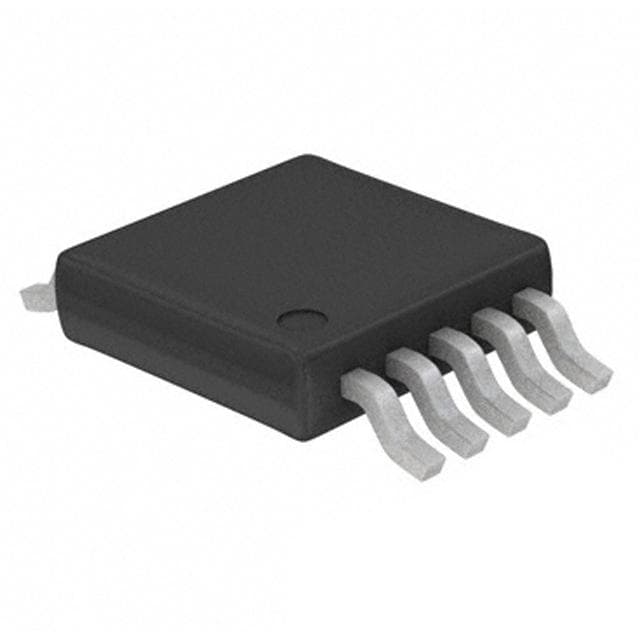

Renesas ISL55291IUZ

Manufacturer No:

ISL55291IUZ

Manufacturer:

Renesas

Package:

MSOP

Description:

132mA per Channel 12μA 100 dB Instrumentational OP Amps 19μA 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL55291IUZ information

Renesas ISL55291IUZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL55291IUZ.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
10

JESD-30 Code
S-PDSO-G10

Qualification Status
Not Qualified

Power Supplies
3.3/5V

Number of Circuits
2

Operating Supply Current
12mA

Supply Current-Max
18mA

Slew Rate
260 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
100 dB

Current - Input Bias
12μA

Output Current per Channel
132mA

Input Offset Voltage (Vos)
170μV

Gain Bandwidth Product
800MHz

Unity Gain BW-Nom
800000 kHz

Average Bias Current-Max (IIB)
19μA

Low-Offset
YES

Frequency Compensation
YES

Supply Voltage Limit-Max
5.5V

Low-Bias
NO

Micropower
NO

Bias Current-Max (IIB) @25C
19μA

Programmable Power
NO

Wideband
YES

Power
NO

Voltage Gain-Min
17780

Download datasheets and manufacturer documentation for Renesas ISL55291IUZ.

ISL55291IUZ Overview

In order to protect the op amps, a MSOP case is used. There are two types of operational amplifiers in this circuit. In recent months, the number of terminations has approached 10. It consists of a total of 10 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 5V battery. A type of Operational Amplifier buffer op amp is what this device is specifically, to be more precise. In terms of input offset voltage, operational amplifier rates 170μV. In order for this instrumentation amplifier to operate, the supply current needs to be between 12mA and 10 . In total, there are 2 circuits on this buffer amplifier. It is recommended that the temperature of this op amp ic should not fall below -40°C degrees Fahrenheit at any time. Linear amplifier shouldn't be used above 85°C degrees. A minimum voltage gain of 17780 is the minimum voltage gain that this instrumentation amplifier is capable of producing.

ISL55291IUZ Features

10 Pins
supply voltage of 5V

ISL55291IUZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL55291IUZ Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
