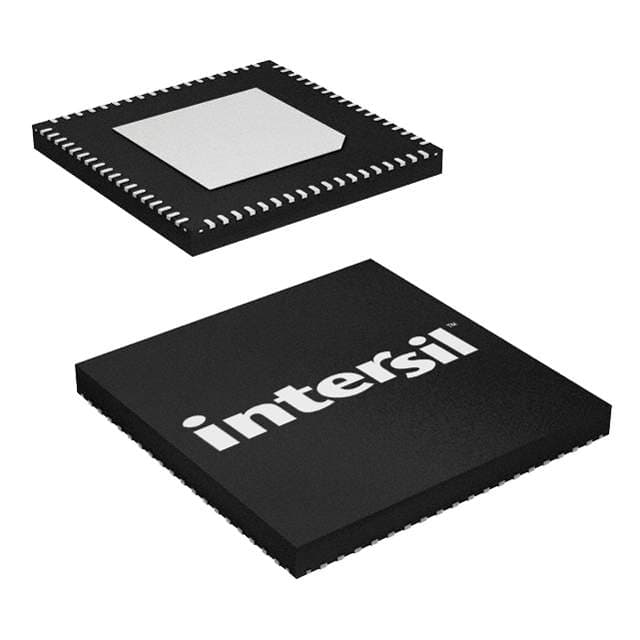

Renesas ISL55100AIRZ

Manufacturer No:

ISL55100AIRZ

Manufacturer:

Renesas

Package:

QFN

Description:

12-3V Specialty Logic IC 72 Pin 0.5mm 15V QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL55100AIRZ information

Renesas ISL55100AIRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL55100AIRZ.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
QFN

Number of Pins
72

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
72

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
REQUIRES 5.5V SUPPLY WHEN VEXT SUPPLY IS USED

Subcategory
Other Interface ICs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
15V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
72

Max Output Current
1A

Supply Voltage-Max (Vsup)
18V

Power Supplies
12-3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
9V

Number of Channels
4

Nominal Supply Current
65mA

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Output Peak Current Limit-Nom
1A

Output Current Flow Direction
SOURCE SINK

Height
950?m

Length
10mm

Width
10mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL55100AIRZ.

Datasheets:

intersil-isl55100airz-datasheets-4862.pdf

ISL55100AIRZ Overview

You can find it in the QFN package.Providing a voltage of 15V ensures proper function of the device.The total number of pins on the component is 72.In 72 terminations, signals are prevented from reflecting off the end of the transmission line.Surface Mount is used for mounting.It is constructed from 72 pins.The item falls under the Other Interface ICs subcategory.Maintaining the power supplies of 12-3V is essential for convenient operation.With REQUIRES 5.5V SUPPLY WHEN VEXT SUPPLY IS USED, it offers high performance.In terms of interface IC type, BUFFER OR INVERTER BASED PERIPHERAL DRIVER is used.There is one important point to note, which is that the operating temperature of the device should not exceed 85°C.Operating temperature should be at least -40°C and not lower.The number of data transmission channels is 4.
