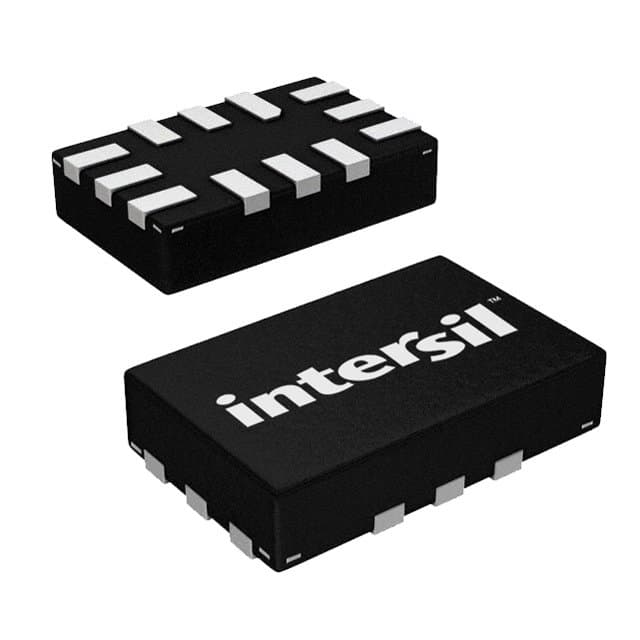

Renesas ISL54233IRUZ-T

Manufacturer No:

ISL54233IRUZ-T

Manufacturer:

Renesas

Package:

Description:

QUAD Analog Switches BREAK-BEFORE-MAKE 3V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL54233IRUZ-T information

Renesas ISL54233IRUZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL54233IRUZ-T.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Number of Pins
12

Packaging
Tape & Reel

Published
2010

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

Resistance
15Ohm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
FAULT PROTECTED

Technology
CMOS

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.4mm

Operating Supply Voltage
3V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
4.6V

Min Supply Voltage
2.7V

Max Supply Current
8?A

Propagation Delay
250 ps

Logic Function
Multiplexer

Supply Type
Single

Bandwidth
1.6 GHz

Off-state Isolation-Nom
32 dB

On-state Resistance Match-Nom
0.07Ohm

Switching
BREAK-BEFORE-MAKE

Signal Current-Max
0.04A

Height
500?m

Length
2.2mm

Width
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL54233IRUZ-T.

Datasheets:

intersil-isl54233iruzt-datasheets-4025.pdf

ISL54233IRUZ-T Overview

High reliability is provided by advanced packaging method Tape & Reel. Total terminations are 12. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 3V volts, the electrical component should be turned on and run. There is 15Ohm internal resistance in this digital multiplexer. For functions related to 12 pins, please refer to the datasheets. A voltage higher than 4.6V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 2.7V should be the lowest voltage fed to the electronic component. For this multiplexer to operate, 6.5?A current would be sufficient. The analogue multiplexer may be damaged if voltage is greater than 8?A. 3V operating voltages are supported by the electronic component. A 1.6 GHz-bandwidth can be used for data transfer. Additional features of the electronic component include: FAULT PROTECTED. Temperatures above 85°C should not be used to operate the switches.

ISL54233IRUZ-T Features

1 Channels
6.5?A Supply Current
Bandwidth: 1.6 GHz
Additional Features: FAULT PROTECTED

ISL54233IRUZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL54233IRUZ-T Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
