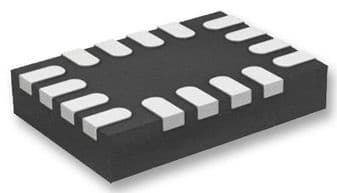

Renesas ISL54057IRUZ-T

Manufacturer No:

ISL54057IRUZ-T

Manufacturer:

Renesas

Package:

Description:

QUAD Analog Switches BREAK-BEFORE-MAKE 16 Pins 3V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL54057IRUZ-T information

Renesas ISL54057IRUZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL54057IRUZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
16

Published
2006

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
750mOhm

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

Operating Supply Voltage
3V

Temperature Grade
INDUSTRIAL

Number of Channels
2

Number of Circuits
1

Min Supply Voltage
1.6V

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Operating Supply Current
50nA

Max Supply Current
50nA

Propagation Delay
35 ns

Turn On Delay Time
34 ns

Supply Type
Single

Turn-Off Delay Time
26 ns

Off-state Isolation-Nom
65 dB

On-state Resistance Match-Nom
0.09Ohm

Switching
BREAK-BEFORE-MAKE

Signal Current-Max
0.3A

Height Seated (Max)
0.55mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL54057IRUZ-T.

Datasheets:

intersil-isl54057iruzt-datasheets-5659.pdf

ISL54057IRUZ-T Overview

Totally, there are 16 terminations. A high-quality output is provided by the electrical component's 2 channels. It is safe to turn on and run the electronic component with a 3V voltage supply. A total of 16 pins are injected into the electrical part body. The circuits in this analogue multiplexer number 1. In this multiplexer, the internal resistance is 750mOhm. For details about the functions of 16 pins, please refer to the datasheets. There is Multiplexer or Switches analog multiplexer like this in the world. It is generally not recommended to supply a voltage higher than 3.6V to the switch device in normal circumstances. The digital multiplexer has a low cost Single supply. 1.6V is the lowest voltage the electrical component should receive. For this digital switch to work, 50nA current would suffice. Putting voltage greater than 50nA on the multiplexer may cause damage. It is integrated with a DIFFERENTIAL MULTIPLEXER analog IC. The electrical part can be operated at 3V voltage levels. An environment with a temperature greater than 85°C should not be used to operate the digital switches.

ISL54057IRUZ-T Features

2 Channels
50nA Supply Current

ISL54057IRUZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL54057IRUZ-T Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
