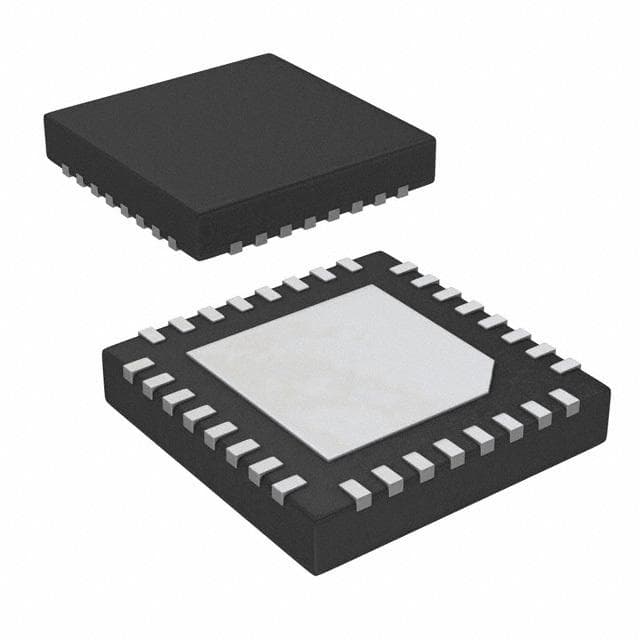

Renesas ISL4270EIR

Manufacturer No:

ISL4270EIR

Manufacturer:

Renesas

Package:

QFN

Description:

32 Terminations 32 Pin Receivers 3 Bits 3 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL4270EIR information

Renesas ISL4270EIR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL4270EIR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Packaging
Bulk

Published
2000

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3.3/5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Nominal Supply Current
300nA

Data Rate
250 kbps

Differential Output
NO

Input Characteristics
SCHMITT TRIGGER

Interface IC Type
LINE TRANSCEIVER

Driver Number of Bits
3

Receiver Number of Bits
3

Output Low Current-Max
0.0016A

Out Swing-Min
5 V

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL4270EIR.

Datasheets:

intersil-isl4270eir-datasheets-4015.pdf

ISL4270EIR Overview

Driver ICs with enhanced QFN packages are excellent for driving LEDs with common characteristics.In the Bulk package, this receiver is mounted.There is a voltage range of 3.3V for this line driver ic, so it can operate efficiently.The integrated terminations of this wide receiver allow it to drive and receive signals from data.The pinouts for this transceiver are standardized to meet the needs of the market.An enhanced power dissipation control is provided by this 32-pin driver IC.As a result of optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size has been greatly reduced.As a result of the ic receiver, the resolution of the driver was increased to 3 bits.As a rule of thumb, this receiver is typically specified with a resolution of 3 bits.A Line Driver or Receivers subcategory can be assigned to this rf transceiver module.Driver ICs are designed to work with a 3.3/5V power supply and this driver IC is one of them.IC receiver has an interface IC type called LINE TRANSCEIVER, which controls and manages the sharing of data.Driver ICs aren't allowed to operate above 85°C.In order to get the best performance, this transceiver module should be handled with a voltage lower than 5.5V.The voltage supply should be at least 3V for this module isolated transceiver to operate.It is recommended that the operating temperature be above -40°C.

ISL4270EIR Features

Bulk package
32 pin count
32 pins
3.3/5V power supply

ISL4270EIR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL4270EIR Drivers/Receivers/Transceivers applications.

Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
