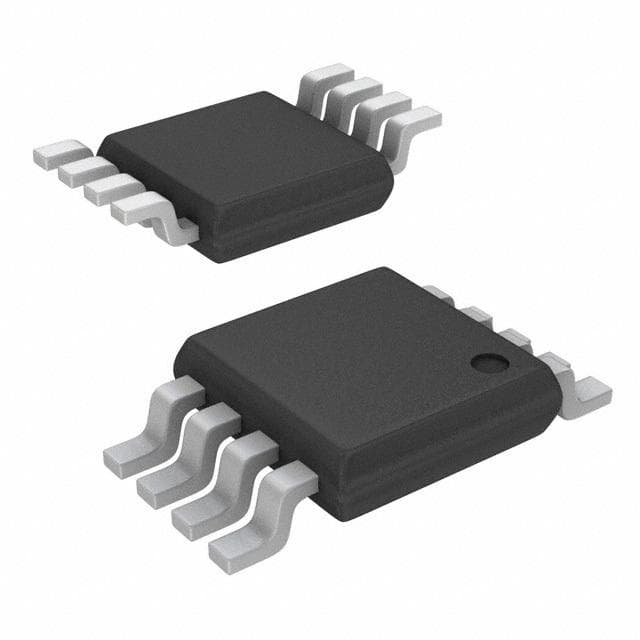

Renesas ISL28246FUZ-T7

Manufacturer No:

ISL28246FUZ-T7

Manufacturer:

Renesas

Package:

MSOP

Description:

56mA per Channel 16nA 114 dB Instrumentational OP Amps 0.04μA 8 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL28246FUZ-T7 information

Renesas ISL28246FUZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28246FUZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Packaging
Tape & Reel (TR)

Published
2007

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
S-PDSO-G8

Qualification Status
Not Qualified

Temperature Grade
AUTOMOTIVE

Number of Circuits
2

Operating Supply Current
1mA

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
114 dB

Current - Input Bias
16nA

Output Current per Channel
56mA

Input Offset Voltage (Vos)
30μV

Gain Bandwidth Product
5MHz

Unity Gain BW-Nom
5000 kHz

Average Bias Current-Max (IIB)
0.04μA

Low-Offset
YES

Frequency Compensation
YES

Supply Voltage Limit-Max
5.75V

Low-Bias
NO

Micropower
NO

-3db Bandwidth
13MHz

Bias Current-Max (IIB) @25C
0.035μA

Programmable Power
NO

Wideband
NO

Power
NO

Voltage Gain-Min
500000

Length
3mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL28246FUZ-T7.

ISL28246FUZ-T7 Overview

Packaging for the buffer amplifier is in the form of a MSOP case. A OPERATIONAL AMPLIFIER-type buffer amplifier is shown here. There is a Tape & Reel (TR) case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 8 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 5V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type device. With regards to the offset voltage of the input, buffer amplifier is rated at 30μV. Using a supply current of 1mA , this buffer op amp will be able to operate. The buffer amp consists of 2 circuits in total. This op amp needs to be operated at a temperature of not less than -40°C degrees Celsius in order to function properly. You should not use op amp above 125°C degrees. A TAPE AND REEL-shaped amplifier is used to pack the buffer amps. There are a maximum of 500000 voltage gains that can be conducted by this operational amplifier at its minimum voltage gain.

ISL28246FUZ-T7 Features

8 Pins
supply voltage of 5V

ISL28246FUZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
ISL28246FUZ-T7 Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
