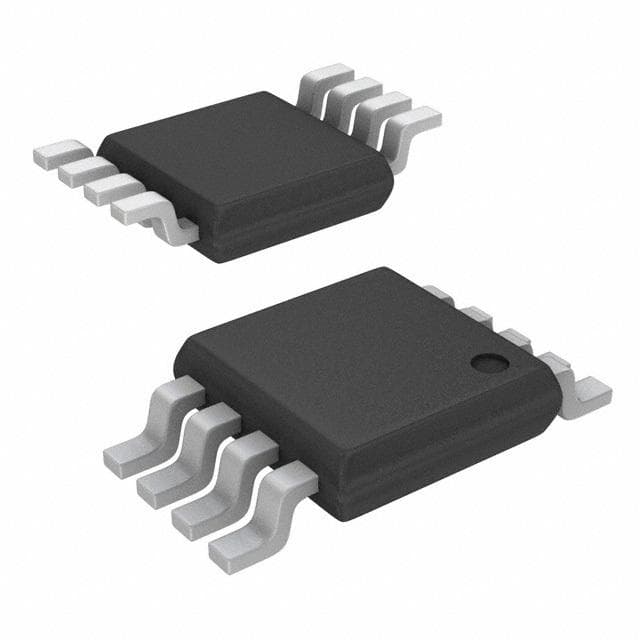

Renesas ISL28233IUZ-T7

Manufacturer No:

ISL28233IUZ-T7

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 19mA per Channel 30pA 125 dB Instrumentational OP Amps 0.00011μA 5V 8 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL28233IUZ-T7 information

Renesas ISL28233IUZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28233IUZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Weight
139.989945mg

Published
2008

JESD-609 Code
e3

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
S-PDSO-G8

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Number of Channels
2

Min Supply Voltage
1.65V

Operating Supply Current
18μA

Supply Current-Max
0.07mA

Slew Rate
0.2 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
125 dB

Current - Input Bias
30pA

Output Current per Channel
19mA

Supply Type
Dual, Single

Input Offset Voltage (Vos)
2μV

Gain Bandwidth Product
400 kHz

Unity Gain BW-Nom
400 kHz

Voltage Gain
174dB

Average Bias Current-Max (IIB)
0.00011μA

Power Supply Rejection Ratio (PSRR)
110dB

Low-Offset
YES

Frequency Compensation
YES

Max Dual Supply Voltage
2.75V

Low-Bias
YES

Micropower
YES

Min Dual Supply Voltage
825mV

Bias Current-Max (IIB) @25C
0.00011μA

Download datasheets and manufacturer documentation for Renesas ISL28233IUZ-T7.

ISL28233IUZ-T7 Overview

In the package, you will find a MSOP-case to contain the op amp ic. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are located on this board. This linear amplifier should be powered by an 5V battery. This particular linear amplifier is a type of Operational Amplifier device, to be precise. Op amp rates 2μV as input offset voltage. Using an 18μA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 174dB for the time being. On the buffer amps, there are 2 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. The operating supply voltage of the buffer op amp is rated at 5V. The linear amplifier is packaged by using a TAPE AND REEL axis. This electric component can work from a voltage of under 5.5V as far as supply voltage is concerned. A voltage of 1.65V or higher is recommended for the linear amplifier's supply voltage. This electrical part should be conducted under the dual supply voltage of 2.75V volts when you conduct this part.

ISL28233IUZ-T7 Features

8 Pins
supply voltage of 5V
174dB voltage gain

ISL28233IUZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
ISL28233IUZ-T7 Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
