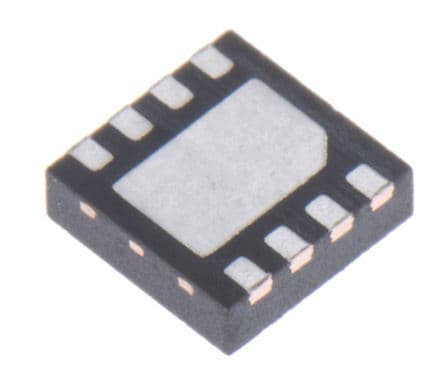

Renesas ISL28230CRZ-T7A

Manufacturer No:

ISL28230CRZ-T7A

Manufacturer:

Renesas

Package:

DFN

Description:

15mA per Channel 250pA 125 dB Instrumentational OP Amps 0.0007?A DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL28230CRZ-T7A information

Renesas ISL28230CRZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28230CRZ-T7A.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
DFN

Number of Pins
8

Packaging
Cut Tape

Published
2008

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Temperature Grade
COMMERCIAL

Number of Circuits
2

Max Supply Voltage
5.5V

Operating Supply Current
20?A

Supply Current-Max
0.07mA

Slew Rate
0.2 V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
125 dB

Current - Input Bias
250pA

Output Current per Channel
15mA

Input Offset Voltage (Vos)
5?V

Bandwidth
400 kHz

Gain Bandwidth Product
400 kHz

Unity Gain BW-Nom
400 kHz

Voltage Gain
150dB

Average Bias Current-Max (IIB)
0.0007?A

Power Supply Rejection Ratio (PSRR)
138dB

Low-Offset
YES

Frequency Compensation
YES

Max Dual Supply Voltage
2.75V

Low-Bias
YES

Micropower
YES

Min Dual Supply Voltage
900mV

Input Voltage Noise Density
65nV/sqrt Hz

Input Noise Current Density
0.08pA/sqrt Hz

Download datasheets and manufacturer documentation for Renesas ISL28230CRZ-T7A.

Datasheets:

intersil-isl28230crzt7a-datasheets-0883.pdf

ISL28230CRZ-T7A Overview

It is packaged in an DFN-case that protects the operational amplifiers from damage. An op amp of this type is a OPERATIONAL AMPLIFIER-type. As far as the packaging is concerned, buffer op amp is delivered in a Cut Tape case. It is estimated that there will be at least 8 terminations this year. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. In total, the buffer amplifier consists of 8 pins. Op amp ic rates 5?V for input offset voltage. A supply current of 20?A can be used to operate this linear amplifier. There should be no change in the voltage gain at 150dB. This op amp ic has 2 circuits. This instrumentation amplifier cannot operate below 0°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 70°C. An buffer amplifier is packed in a TAPE AND REEL-shape according to the design. It is important to keep in mind that the power supply voltage of this electric component is below 5.5V, which is suitable. Keeping the linear amplifier's supply voltage above 1.8V is recommended. In order to conduct this part, you will need to provide dual supply voltages of 2.75V volts.

ISL28230CRZ-T7A Features

supply voltage of 5V
150dB voltage gain

ISL28230CRZ-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
ISL28230CRZ-T7A Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
