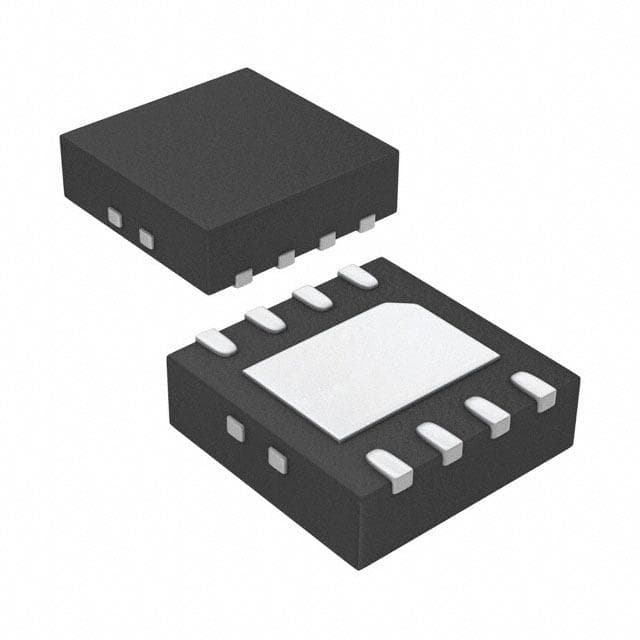

Renesas ISL28230CRZ-T7
Manufacturer No:
ISL28230CRZ-T7
Manufacturer:
Package:
DFN
Description:
2 Channels 15mA per Channel 250pA 125 dB Instrumentational OP Amps 0.0007μA 8, 8, 8 Pins DFN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL28230CRZ-T7 information
Renesas ISL28230CRZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28230CRZ-T7.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Surface Mount
- Package / Case
- DFN
- Packaging
- Tape & Reel
- Published
- 2008
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Subcategory
- Operational Amplifier
- Packing Method
- TAPE AND REEL
- Technology
- CMOS
- Terminal Position
- DUAL
- Number of Functions
- 2
- Supply Voltage
- 5V
- Terminal Pitch
- 0.65mm
- Pin Count
- 8, 8, 8
- JESD-30 Code
- S-PDSO-N8
- Temperature Grade
- COMMERCIAL
- Number of Channels
- 2
- Min Supply Voltage
- 1.8V
- Operating Supply Current
- 20μA
- Supply Current-Max
- 0.07mA
- Slew Rate
- 0.2 V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 125 dB
- Current - Input Bias
- 250pA
- Output Current per Channel
- 15mA
- Input Offset Voltage (Vos)
- 5μV
- Bandwidth
- 400 kHz
- Gain Bandwidth Product
- 400 kHz
- Unity Gain BW-Nom
- 400 kHz
- Voltage Gain
- 150dB
- Average Bias Current-Max (IIB)
- 0.0007μA
- Power Supply Rejection Ratio (PSRR)
- 138dB
- Low-Offset
- YES
- Frequency Compensation
- YES
- Max Dual Supply Voltage
- 2.75V
- Low-Bias
- YES
- Micropower
- YES
- Min Dual Supply Voltage
- 900mV
- Input Voltage Noise Density
- 65nV/sqrt Hz
Download datasheets and manufacturer documentation for Renesas ISL28230CRZ-T7.
ISL28230CRZ-T7 Overview
It is packaged in an DFN-case that protects the operational amplifiers from damage. An op amp of this type is a OPERATIONAL AMPLIFIER-type. As far as the packaging is concerned, buffer op amp is delivered in a Tape & Reel case. It is estimated that there will be at least 8 terminations this year. A total of 8, 8, 8 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. Op amp ic rates 5μV for input offset voltage. A supply current of 20μA can be used to operate this linear amplifier. There should be no change in the voltage gain at 150dB. There are a total of 2 channels available on the op amps. This instrumentation amplifier cannot operate below 0°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 70°C. An buffer amplifier is packed in a TAPE AND REEL-shape according to the design. It is important to keep in mind that the power supply voltage of this electric component is below 5.5V, which is suitable. Keeping the linear amplifier's supply voltage above 1.8V is recommended. In order to conduct this part, you will need to provide dual supply voltages of 2.75V volts.
ISL28230CRZ-T7 Features
8, 8, 8 Pins
supply voltage of 5V
150dB voltage gain
ISL28230CRZ-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
ISL28230CRZ-T7 Instrumentational OP Amps applications.
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
