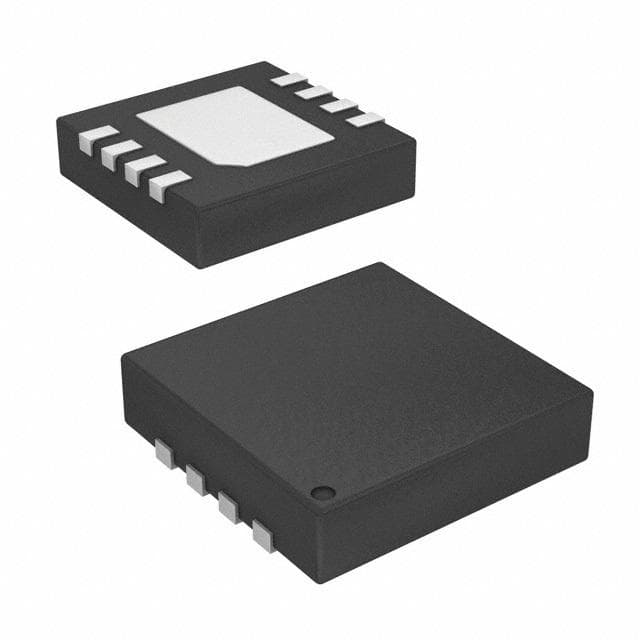

Renesas ISL28127FRTBZ-T7A

Manufacturer No:

ISL28127FRTBZ-T7A

Manufacturer:

Renesas

Package:

DFN

Description:

1 Channels 45mA per Channel 1nA 115 dB Instrumentational OP Amps 28V DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL28127FRTBZ-T7A information

Renesas ISL28127FRTBZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28127FRTBZ-T7A.

Type
Parameter

Mount
Surface Mount

Package / Case
DFN

Number of Pins
8

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Operating Supply Voltage
28V

Temperature Grade
AUTOMOTIVE

Number of Channels
1

Max Supply Voltage
40V

Min Supply Voltage
4.5V

Nominal Supply Current
2.8mA

Slew Rate
3.6 V/μs

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
115 dB

Current - Input Bias
1nA

Output Current per Channel
45mA

Supply Type
Dual, Single

Input Offset Voltage (Vos)
10μV

Gain Bandwidth Product
10MHz

Neg Supply Voltage-Nom (Vsup)
-5V

Unity Gain BW-Nom
10000 kHz

Voltage Gain
123.52dB

Power Supply Rejection Ratio (PSRR)
115dB

Max Dual Supply Voltage
20V

Min Dual Supply Voltage
2.25V

Dual Supply Voltage
18V

Length
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL28127FRTBZ-T7A.

ISL28127FRTBZ-T7A Overview

There is a DFN case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. The number of terminations is approaching the 8 mark. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 10μV. It is possible to operate this buffer amplifier from a supply current of 2.2mA . 123.52dB should be the voltage gain. Op amp ic has 1 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. The operating supply voltage of the buffer op amp is rated at 28V. The electrical part is capable of being powered by a voltage of under 40V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 4.5V. As a general rule, you should conduct this electronic component under dual supply voltages of 20V volts.

ISL28127FRTBZ-T7A Features

supply voltage of 5V
123.52dB voltage gain

ISL28127FRTBZ-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
ISL28127FRTBZ-T7A Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
