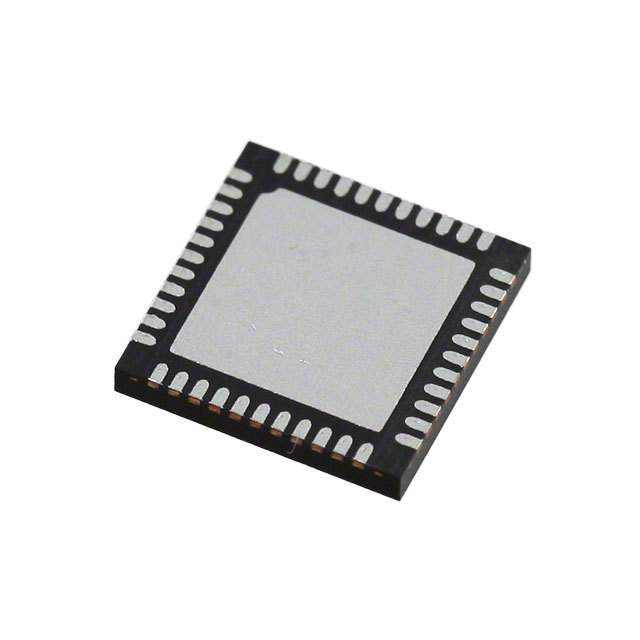

Renesas ISL24003IRZ-T7

Manufacturer No:

ISL24003IRZ-T7

Manufacturer:

Renesas

Package:

QFN

Description:

130mA per Channel Instrumentational OP Amps 0.05μA 44 Pins QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL24003IRZ-T7 information

Renesas ISL24003IRZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL24003IRZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
EAR99

Terminal Finish
MATTE TIN

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
44

JESD-30 Code
S-XQCC-N44

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Temperature Grade
INDUSTRIAL

Number of Circuits
18

Operating Supply Current
11.5mA

Supply Current-Max
15.5mA

Slew Rate
9 V/μs

Amplifier Type
BUFFER

Output Current per Channel
130mA

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
10MHz

Bias Current-Max (IIB) @25C
0.05μA

Input Offset Voltage-Max
20000μV

Length
7mm

Height Seated (Max)
0.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL24003IRZ-T7.

ISL24003IRZ-T7 Overview

Op amp is packaged in QFN case. Op amps are BUFFER types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 44. Linear amplifier has a total of 44 pins. Please take in mind that op amp should be run at 15V. Instrumentation amplifier is a part of Buffer Amplifier. Operational amplifier can operate supply current at 11.5mA. There are 18 circuits on op amps.

ISL24003IRZ-T7 Features

44 Pins
supply voltage of 15V

ISL24003IRZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
ISL24003IRZ-T7 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
