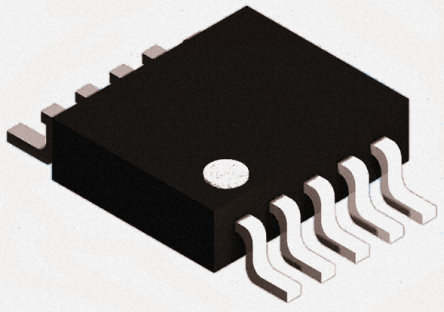

Renesas ISL22313WFU10Z

Manufacturer No:

ISL22313WFU10Z

Manufacturer:

Renesas

Package:

MSOP

Description:

10 Terminations 3.3V 10 Pin Digital Potentiometers I2C 256 Positions Min 2.25V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL22313WFU10Z information

Renesas ISL22313WFU10Z technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL22313WFU10Z.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Published
2006

Tolerance
20%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Temperature Coefficient
150 ppm/°C

Resistance
10kOhm

Number of Positions
256

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
10

Operating Supply Voltage
5V

Temperature Grade
AUTOMOTIVE

Interface
I2C

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
2.25V

Nominal Supply Current
700?A

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Bandwidth
1 kHz

Dual Supply Voltage
5.5V

Total Resistance
10000Ohm

Height
950?m

Length
3.05mm

Width
3.05mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL22313WFU10Z.

Datasheets:

intersil-isl22313wfu10z-datasheets-0617.pdf

ISL22313WFU10Z Overview

Package MSOP contains it.At Non-Volatile, this pentometer is stored for the first time.This digital potentiometer includes 1 embedded circuits.256 positions make up the pentometer.A termination of 10 is intended.The following programmable potentiometer includes 1 functions.Based on the picture, the total resistance of the speed potentiometers is 10000Ohm.The performance of the product is powered by 3.3V.On the digi devices, you can see the 10 pins.Flow can be restricted using 10kOhm.The Surface Mount mounts digital potentiometer.10 pins are present on this potentiameter.It can be classified as a DIGITAL POTENTIOMETER converter.Potentiometers conduct when the supply voltage is 5V.It ensures stability of the digital resistor if it runs at its maximum 125°C.The temperature must be kept below -40°C in order to maintain reliability.Digital Potentiometers is the family of the pentometer.5.5V is the maximum voltage that it can handle.In order to function, the supply voltage must be at least 0.

ISL22313WFU10Z Features

Available in MSOP package
1 Circuits
10 pins
Operate supply voltage at the range of 5V

ISL22313WFU10Z Applications

There are a lot of Intersil (Renesas Electronics America)
ISL22313WFU10Z Digital Potentiometers applications.

Refrigerator
Programmable computer
Power supply
Power meter
Automatic detection of equipment
Optic fiber network
Adjusting the LCD Display
Voltage control
Replaces mechanical potentiometers
Matching Linear Impedance
