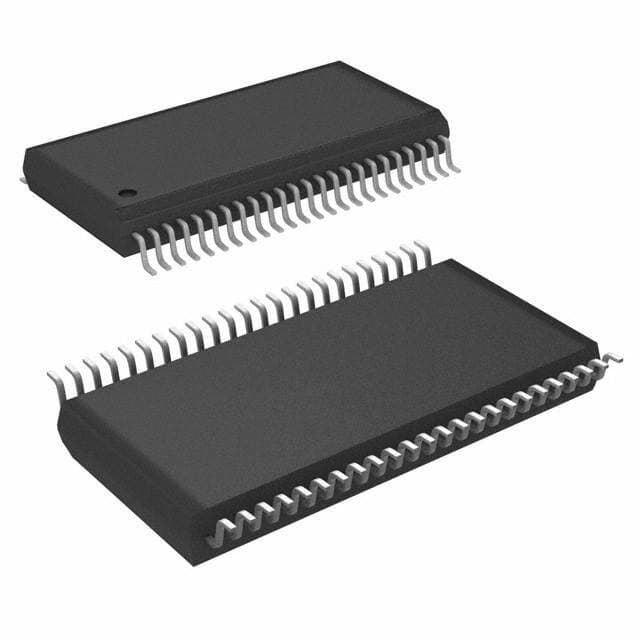

Renesas ISL1801IVZ-T

Manufacturer No:

ISL1801IVZ-T

Manufacturer:

Renesas

Package:

48-TFSOP (0.240, 6.10mm Width)

Description:

Converter, Solar Power NOT SPECIFIED Cel DUAL Specialized Voltage Regulator -40°C~85°C ISL1801 48 Pins 48 Terminations 48-TFSOP (0.240, 6.10mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL1801IVZ-T information

Renesas ISL1801IVZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL1801IVZ-T.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.240, 6.10mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2014

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
48

Terminal Finish
Matte Tin (Sn)

Applications
Converter, Solar Power

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
10V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL1801

Pin Count
48

Number of Outputs
4

Supply Voltage-Min (Vsup)
6V

Number of Channels
4

Voltage - Input
9V~90V

Adjustable Threshold
YES

Length
12.5mm

Height Seated (Max)
1.1mm

Width
6.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL1801IVZ-T.

Datasheets:

renesaselectronicsamericainc-isl1801ivzt-datasheets-6424.pdf

ISL1801IVZ-T Overview

There are a total of 4 outputs supported by the voltage regulator. The rectifier regulator is packaged in 48-TFSOP (0.240, 6.10mm Width) for ease of transportation. In Tape & Reel (TR) package, ready for shipping. Surface Mount Universal mount allows for easy adaptation. The shunt regulator is intended for use in applications such as Converter, Solar Power and others. It is recommended that the operating temperature be set to -40°C~85°C in order to prevent malfunctions. The input voltage for this external regulator is designed to be 9V~90V. It is possible to find 48terminals on the voltage regulator. This electronic part is highly regarded as a POWER SUPPLY MANAGEMENT CIRCUIT regulator. The rectifier regulator's pinout begins with 48pins. Search ISL1801 to find more pin-to-pin solutions. Providing 10V voltage, the power regulator is capable of handling a wide range of tasks. The output quality is maintained by the cooperation of 4 channels.
