Renesas IS82C55A-5Z

Manufacturer No:

IS82C55A-5Z

Manufacturer:

Renesas

Package:

PLCC

Description:

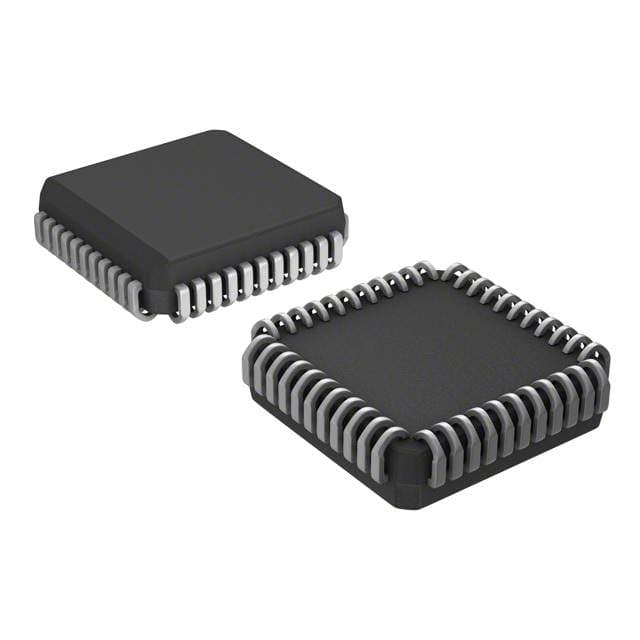

44 Termination 1.27mm 5V I/O Expander 44 Pin 5MHz 5V PLCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS82C55A-5Z information

Renesas IS82C55A-5Z technical specifications, attributes, parameters and parts with similar specifications to Renesas IS82C55A-5Z.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
44

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Supply Voltage
5V

Terminal Pitch
1.27mm

Frequency
5MHz

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Pin Count
44

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.5V

Interface
Parallel

Number of I/O
24

Number of Ports
3

Supply Current-Max
1mA

Length
16.585mm

Height Seated (Max)
4.57mm

Width
16.585mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IS82C55A-5Z.

Datasheets:

intersil-is82c55a5z-datasheets-4743.pdf

IS82C55A-5Z Overview

With 24 I/Os, it can be programmed.The device is packaged with the PLCC.Its terminations, as a whole, are in the 44 direction.Total pin count on the part is 44.Device 5V provides voltage.To run NOT APPLICABLE, we rely on this part's peak reflow temperature.A total of five 3 ports are available on the device.At 5V, the power can be delivered.The device is equipped with 44 pins.It is possible to mount the part using Surface Mount.At 85°C, the maximum temperature is reached.In this device, the minimum working temperature cannot be lower than -40°C.Running at a frequency of 5MHz will enable it to perform effectively.
