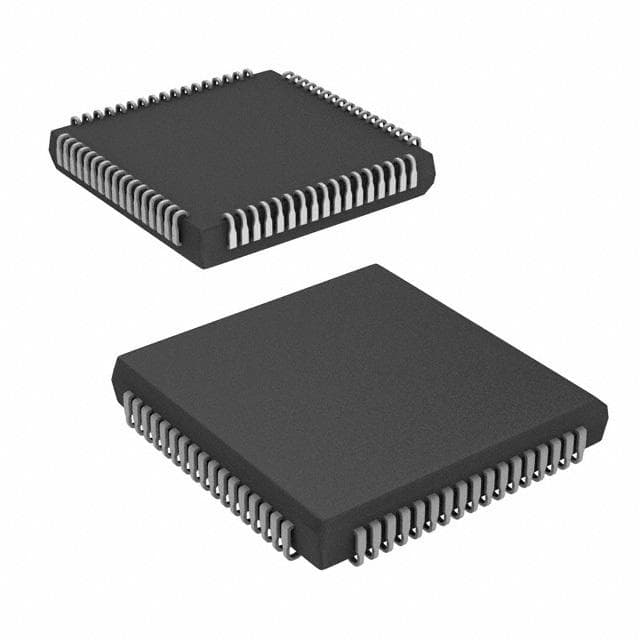

Renesas IS80C286-20

Manufacturer No:

IS80C286-20

Manufacturer:

Renesas

Package:

PLCC

Description:

1.27mm 5V 16-bit Microprocessor 68-Pin 20MHz 5V PLCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS80C286-20 information

Renesas IS80C286-20 technical specifications, attributes, parameters and parts with similar specifications to Renesas IS80C286-20.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
68

Packaging
Bulk

Published
1996

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
68

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.31.00.01

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Supply Voltage
5V

Terminal Pitch
1.27mm

Frequency
20MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
68

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Voltage
5V

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR

Supply Current-Max
310mA

Bit Size
16

Frequency (Max)
20MHz

Data Bus Width
16b

Address Bus Width
24

Boundary Scan
NO

Low Power Mode
YES

Format
FIXED POINT

Integrated Cache
NO

Length
24.23mm

Height Seated (Max)
4.57mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas IS80C286-20.

Datasheets:

intersil-is80c28620-datasheets-7911.pdf

IS80C286-20 Overview

The microprocessor is conveniently packaged in PLCC, making it easy to ship internationally. High reliability is provided by the advanced packaging method Bulk. This is a MICROPROCESSOR for the uPs/uCs/Peripheral ICs type. Total terminations are 68. In the case of a 5V voltage supply, the embedded microprocessor should be turned on and run. A 16-Bit architecture is used. CPUs operate at 20MHz Hz. For functions of 68 pins, please refer to the datasheets. A typical Microprocessors embedded microprocessor. Data can be transferred over 16b bandwidths. Temperatures above 85°C are not suitable for operating the microprocessor. The CPU microprocessor body is injected with 68 pins. Many applications use this CPU with Surface Mount mounted. 20MHz is expected to be the top frequency of the CPU. From 5V, the micro processor can be used. Datasheets specify that the embedded microprocessor requires 5V power supplies. There is 5V voltage at the CPU core. The CPU can only be supplied with voltage up to 310mA.

IS80C286-20 Features

16-Bit Structure
16b-Bit Data Bus Width

IS80C286-20 Applications

There are a lot of Intersil (Renesas Electronics America)
IS80C286-20 Microprocessor applications.

Automatic control
Equipment control
Instrument control
Consumer electronics products
Toys
Robots
Radio
Television
Heater/Fan
Calculator
