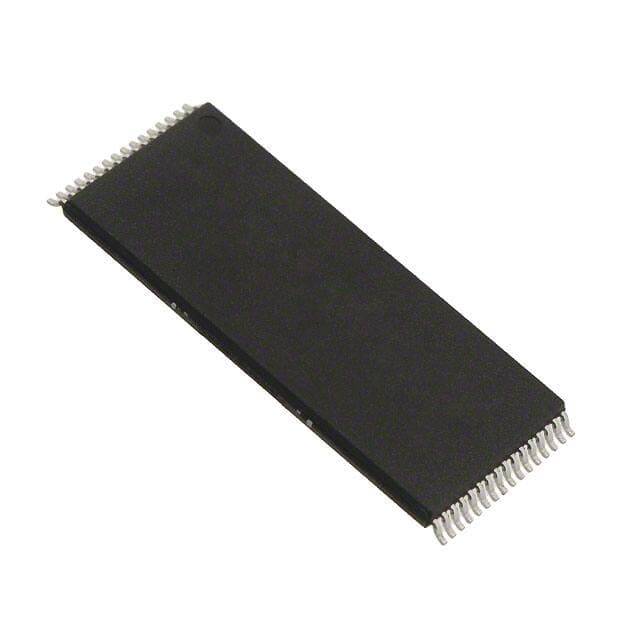

ISSI IS62WV1288BLL-55TLI

Manufacturer No:

IS62WV1288BLL-55TLI

Manufacturer:

ISSI

Package:

32-TFSOP (0.724, 18.40mm Width)

Description:

Surface Mount 32 Pin Memory IC 1 Mb kb 18.5mm mm 8mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS62WV1288BLL-55TLI information

ISSI IS62WV1288BLL-55TLI technical specifications, attributes, parameters and parts with similar specifications to ISSI IS62WV1288BLL-55TLI.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
32-TFSOP (0.724, 18.40mm Width)

Number of Pins
32

Operating Temperature
-40°C~85°C TA

Packaging
Tray

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
SRAM - Asynchronous

Voltage - Supply
2.5V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Operating Supply Voltage
3.3V

Supply Voltage-Min (Vsup)
2.5V

Memory Size
1Mb 128K x 8

Number of Ports
1

Nominal Supply Current
8mA

Memory Type
Volatile

Memory Format
SRAM

Memory Interface
Parallel

Output Characteristics
3-STATE

Write Cycle Time - Word, Page
55ns

Address Bus Width
17b

Density
1 Mb

Standby Current-Max
0.000005A

Max Frequency
18MHz

Access Time (Max)
55 ns

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Height
950?m

Length
18.5mm

Width
8.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS62WV1288BLL-55TLI.

IS62WV1288BLL-55TLI Overview

A Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 32-TFSOP (0.724, 18.40mm Width) case, memory ics is a single file. On the chip, there is an 1Mb 128K x 8 memory, which is the size of the chip's memory. There is a SRAM-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of -40°C~85°C TA, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 2.5V~3.6V volts. The recommended mounting type for memory ics is Surface Mount. A total of 32 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3V will be necessary. A 32-pin package containing this memory device is used to house this device. The memory device in question has 32 pins, thus indicating that it has 32 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 3.3V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 8mA for this memory component. 1 ports allow read/write access to one memory address in this chip. As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. An 18MHz maximum frequency can be reached by the memory when running at its maximum frequency.

IS62WV1288BLL-55TLI Features

Package / Case: 32-TFSOP (0.724, 18.40mm Width)
32 Pins
Operating Supply Voltage:3.3V
I/O Type: COMMON

IS62WV1288BLL-55TLI Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS62WV1288BLL-55TLI Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
