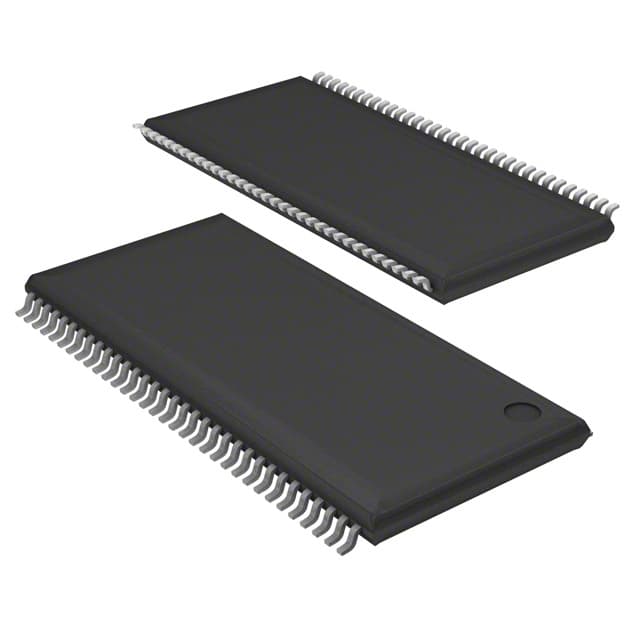

ISSI IS43R16160D-6TL

Manufacturer No:

IS43R16160D-6TL

Manufacturer:

ISSI

Package:

66-TSSOP (0.400, 10.16mm Width)

Description:

Surface Mount 66 Pin Memory IC 256 Mb kb 22.22mm mm 280mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS43R16160D-6TL information

ISSI IS43R16160D-6TL technical specifications, attributes, parameters and parts with similar specifications to ISSI IS43R16160D-6TL.

Type
Parameter

Factory Lead Time
6 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
66-TSSOP (0.400, 10.16mm Width)

Number of Pins
66

Operating Temperature
0°C~70°C TA

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
66

ECCN Code
EAR99

Additional Feature
AUTO/SELF REFRESH

HTS Code
8542.32.00.24

Technology
SDRAM - DDR

Voltage - Supply
2.3V~2.7V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Pin Count
66

Operating Supply Voltage
2.5V

Supply Voltage-Max (Vsup)
2.7V

Supply Voltage-Min (Vsup)
2.3V

Number of Ports
1

Nominal Supply Current
280mA

Memory Type
Volatile

Clock Frequency
166MHz

Access Time
700ps

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
16b

Organization
16MX16

Output Characteristics
3-STATE

Memory Width
16

Write Cycle Time - Word, Page
15ns

Address Bus Width
15b

Density
256 Mb

Standby Current-Max
0.004A

I/O Type
COMMON

Refresh Cycles
8192

Sequential Burst Length
248

Interleaved Burst Length
248

Length
22.22mm

Height Seated (Max)
1.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS43R16160D-6TL.

IS43R16160D-6TL Overview

Volatile is its memory type. It is available in a case with a Tray shape. As you can see, it is embedded in 66-TSSOP (0.400, 10.16mm Width) case. There is an 256Mb 16M x 16 memory capacity on the chip. In this device, the memory is of the DRAM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 2.3V~2.7V is possible to be applied to the supply. There is a recommendation that Surface Mount mounting type should be used for this product. As you can see from the diagram, the chip is planted with 66 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 2.5V power supply. With a clock frequency of 166MHz, the memory rotates on its own. It is encased in an 66-pin package that contains this ic memory chip. It has 66 pins indicating it has 66 memory locations. It is noted that the operating supply voltage of this memory is 2.5V. Chips such as this one are mounted using Surface Mount mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 280mA. While this memory chip features many merits, it also offers AUTO/SELF REFRESH for improving system performance. An address can be read and/or written to one memory address using 1 ports on the chip. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device.

IS43R16160D-6TL Features

Package / Case: 66-TSSOP (0.400, 10.16mm Width)
66 Pins
Operating Supply Voltage:2.5V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

IS43R16160D-6TL Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS43R16160D-6TL Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
