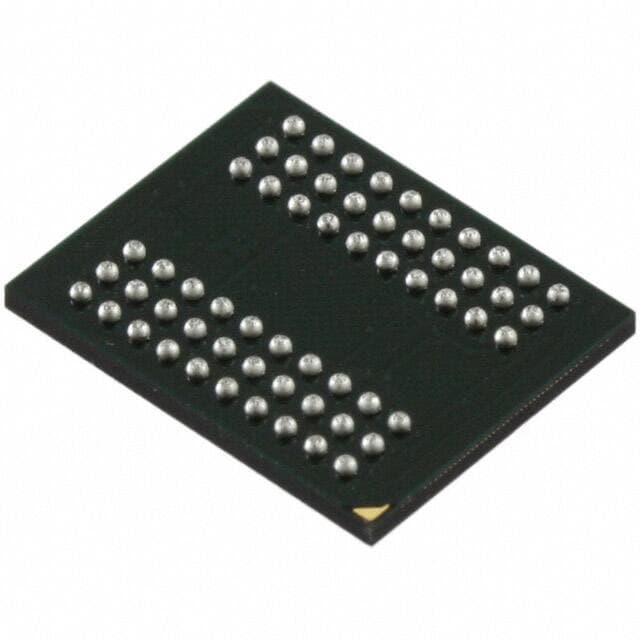

ISSI IS43LR16320C-6BLI

Manufacturer No:

IS43LR16320C-6BLI

Manufacturer:

ISSI

Package:

60-TFBGA

Description:

Surface Mount Memory IC 512 Mb kb 10mm mm 110mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS43LR16320C-6BLI information

ISSI IS43LR16320C-6BLI technical specifications, attributes, parameters and parts with similar specifications to ISSI IS43LR16320C-6BLI.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
60-TFBGA

Number of Pins
60

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
60

Additional Feature
AUTO/SELF REFRESH

Technology
SDRAM - Mobile LPDDR

Voltage - Supply
1.7V~1.95V

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Qualification Status
Not Qualified

Operating Supply Voltage
1.8V

Supply Voltage-Max (Vsup)
1.95V

Supply Voltage-Min (Vsup)
1.7V

Memory Size
512Mb 32M x 16

Number of Ports
1

Nominal Supply Current
110mA

Operating Mode
SYNCHRONOUS

Max Supply Current
60mA

Clock Frequency
166MHz

Access Time
5.5ns

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
16b

Organization
32MX16

Output Characteristics
3-STATE

Memory Width
16

Write Cycle Time - Word, Page
15ns

Address Bus Width
15b

Density
512 Mb

Standby Current-Max
0.0003A

I/O Type
COMMON

Refresh Cycles
8192

Sequential Burst Length
24816

Interleaved Burst Length
24816

Length
10mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS43LR16320C-6BLI.

IS43LR16320C-6BLI Overview

A Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 60-TFBGA case, memory ics is a single file. On the chip, there is an 512Mb 32M x 16 memory, which is the size of the chip's memory. There is a DRAM-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of -40°C~85°C TA, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 1.7V~1.95V volts. The recommended mounting type for memory ics is Surface Mount. A total of 60 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 1.8V will be necessary. A clock frequency rotation within 166MHz is used for the ic memory chip to rotate data. A 60-pin package containing this memory device is used to house this device. There is a note indicating that this memory chip operates at an 1.8V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 110mA for this memory component. This chip features all the merits of a conventional chip, but it also features AUTO/SELF REFRESH to improve system performance. 1 ports allow read/write access to one memory address in this chip. As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. It can be operated with a current of up to 60mA at a maximum.

IS43LR16320C-6BLI Features

Package / Case: 60-TFBGA
60 Pins
Operating Supply Voltage:1.8V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

IS43LR16320C-6BLI Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS43LR16320C-6BLI Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
