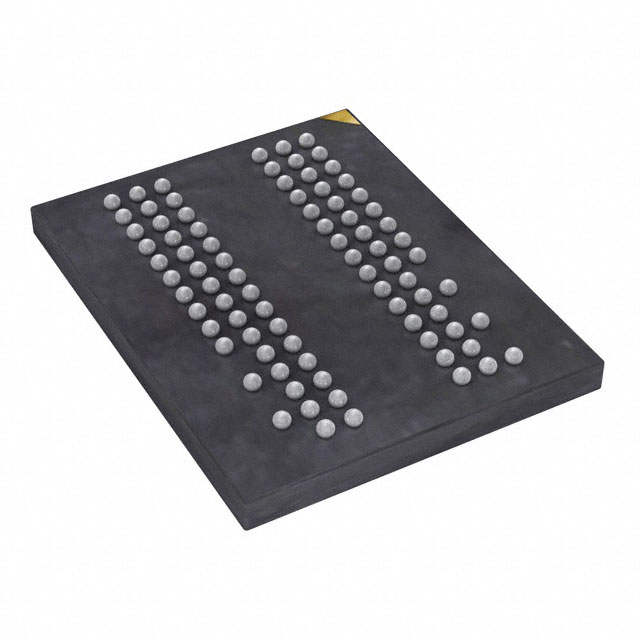

ISSI IS43DR16128A-3DBLI

Manufacturer No:

IS43DR16128A-3DBLI

Manufacturer:

ISSI

Package:

84-LFBGA

Description:

1.8V V Memory IC 13.5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS43DR16128A-3DBLI information

ISSI IS43DR16128A-3DBLI technical specifications, attributes, parameters and parts with similar specifications to ISSI IS43DR16128A-3DBLI.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
84-LFBGA

Surface Mount
YES

Number of Pins
84

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
84

Additional Feature
AUTO/SELF REFRESH

Technology
SDRAM - DDR2

Voltage - Supply
1.7V~1.9V

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
1.9V

Power Supplies
1.8V

Supply Voltage-Min (Vsup)
1.7V

Memory Size
2Gb 128M x 16

Number of Ports
1

Memory Type
Volatile

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.45mA

Access Time
450ps

Memory Format
DRAM

Memory Interface
Parallel

Organization
128MX16

Output Characteristics
3-STATE

Memory Width
16

Write Cycle Time - Word, Page
15ns

Standby Current-Max
0.03A

Memory Density
2147483648 bit

I/O Type
COMMON

Refresh Cycles
8192

Sequential Burst Length
48

Interleaved Burst Length
48

Length
13.5mm

Height Seated (Max)
1.4mm

Width
10.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ISSI IS43DR16128A-3DBLI.

Datasheets:

issiintegratedsiliconsolutioninc-is43dr16128a3dbli-datasheets-4491.pdf

IS43DR16128A-3DBLI Overview

Volatile is the type of memory it has. There is a Tray case available. The 84-LFBGA case contains it. The chip has an 2Gb 128M x 16 memory. This device uses a DRAM-format memory, which is of mainstream design. A wide operating temperature range makes this device ideal for a variety of demanding applications. A voltage of 1.7V~1.9V can be supplied to memory ics. Its recommended mounting type is Surface Mount. The chip has 84 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 1.8V of power. It is important to note that the memory has a clock frequency rotation within the range of 333MHz. The memory device is enclosed in a package with an 84-pin connector. Despite all its merits, this chip also features AUTO/SELF REFRESH to boost system performance. A memory address is accessed through 1 ports on this chip. When it comes to power supplies, this memory chip only requires 1.8V . I/O port addresses on this device are mapped to memory addresses of COMMON bits. A maximum supply current of 0.45mA can be used to operate this device.

IS43DR16128A-3DBLI Features

Package / Case: 84-LFBGA
84 Pins
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

IS43DR16128A-3DBLI Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS43DR16128A-3DBLI Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
