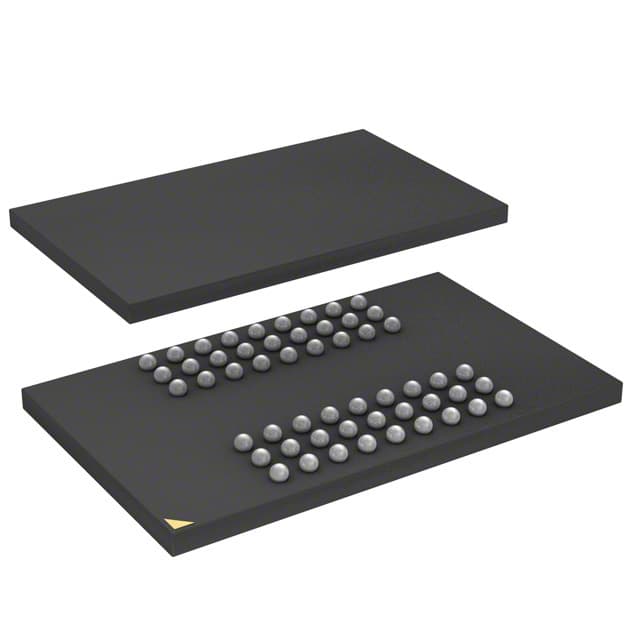

ISSI IS42S16400J-7BLI

Manufacturer No:

IS42S16400J-7BLI

Manufacturer:

ISSI

Package:

54-TFBGA

Description:

Surface Mount 54 Pin Memory IC 64 Mb kb 8mm mm 70mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS42S16400J-7BLI information

ISSI IS42S16400J-7BLI technical specifications, attributes, parameters and parts with similar specifications to ISSI IS42S16400J-7BLI.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
54-TFBGA

Number of Pins
54

Manufacturer Package Identifier
TF-BGA-54-8000X8000DE

Operating Temperature
-40°C~85°C TA

Packaging
Tray

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
54

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
AUTO/SELF REFRESH

Technology
SDRAM

Voltage - Supply
3V~3.6V

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Pin Count
54

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Memory Size
64Mb 4M x 16

Number of Ports
1

Nominal Supply Current
70mA

Memory Type
Volatile

Clock Frequency
143MHz

Access Time
5.4ns

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
16b

Organization
4MX16

Output Characteristics
3-STATE

Memory Width
16

Address Bus Width
14b

Density
64 Mb

I/O Type
COMMON

Refresh Cycles
4096

Sequential Burst Length
1248FP

Interleaved Burst Length
1248

Reverse Pinout
NO

Self Refresh
YES

Height
1.2mm

Length
8mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for ISSI IS42S16400J-7BLI.

IS42S16400J-7BLI Overview

There is a Volatile memory type associated with this device. Tray-cases are available. There is a 54-TFBGA case embedded in it. 64Mb 4M x 16 is the chip's memory size. DRAM-format memory is used in this device, which is a mainstream design. Due to its wide operating temperature range, this device can be used in a wide variety of demanding applications. The supply voltage can be up to 3V~3.6V. A Surface Mount mounting type is recommended for this product. The chip is terminated with 54 terminations. In total, this part supports 1 functions. Memory devices such as this one are designed to be powered by 3.3V and should be used as such. In this memory, the clock frequency rotation is within an 143MHz range. There are 54 pins on the package of the memory device. A memory device with 54 pins means that it contains 54 memory locations, indicating that it has 54 pins. This memory's operating supply voltage is 3.3V. Using Surface Mount mounting, this chip offers straightforward and high-efficiency mounting. It is rated for a nominal supply current of 70mA for this memory component. Despite all the merits of this chip, it also has AUTO/SELF REFRESH to boost system performance. This memory chip has 1 ports for accessing one memory address via read or write. There are COMMON-bit addresses mapped into the memory for I/O ports on this device.

IS42S16400J-7BLI Features

Package / Case: 54-TFBGA
54 Pins
Operating Supply Voltage:3.3V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

IS42S16400J-7BLI Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS42S16400J-7BLI Memory applications.

mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
