ISSI IS31FL3740-ZLS4-TR

Manufacturer No:

IS31FL3740-ZLS4-TR

Manufacturer:

ISSI

Package:

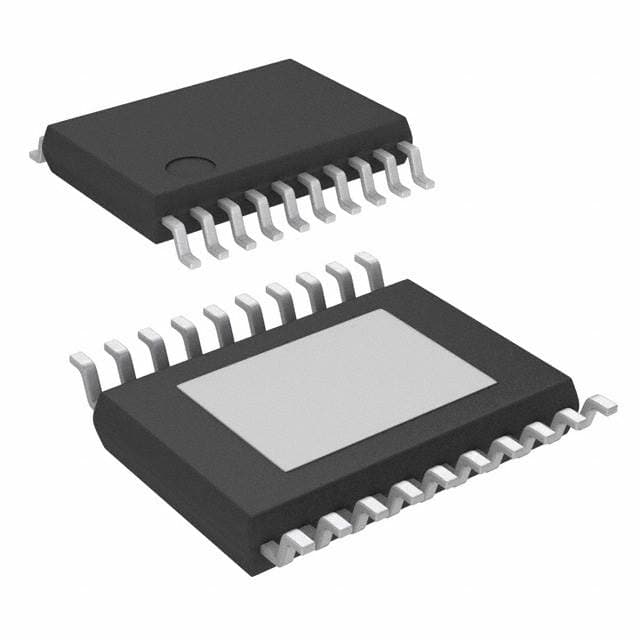

20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

0.65mm PMIC 1MHz 3.6V 20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS31FL3740-ZLS4-TR information

ISSI IS31FL3740-ZLS4-TR technical specifications, attributes, parameters and parts with similar specifications to ISSI IS31FL3740-ZLS4-TR.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Type
Linear

Applications
General Purpose

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.65mm

Frequency
1MHz

JESD-30 Code
R-PDSO-G20

Number of Outputs
4

Current - Output / Channel
84mA

Internal Switch(s)
No

fmax-Min
1 MHz

Dimming
PWM

Voltage - Supply (Max)
5.5V

Voltage - Supply (Min)
2.7V

Display Mode
DOT MATRIX

Data Input Mode
SERIAL

Length
6.5mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS31FL3740-ZLS4-TR.

IS31FL3740-ZLS4-TR Overview

There is a 20-TSSOP (0.173, 4.40mm Width) Exposed Pad package on the board that is used to save space. The LED driver's design uses 4 outputs.Mounting is done according to the Surface Mount method.With high efficiency and reliable performance, it emerges as a Linear.When the temperature is -40°C~125°C, it can work normally.There are significant benefits for General Purpose.In the 1MHz frequency range, it operates.It is designed to work with 20 terminations.It is likely that undetermined failures will occur if the voltage supply is less than 2.7V.12 segments exist.Supply voltage can be set to a maximum value of 5.5V.

IS31FL3740-ZLS4-TR Features

Available in the 20-TSSOP (0.173, 4.40mm Width) Exposed Pad package
Operating temperature of -40°C~125°C
Frequency of 1MHz
Supply voltage of 3.6V

IS31FL3740-ZLS4-TR Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS31FL3740-ZLS4-TR LED Driver ICs applications.

Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
