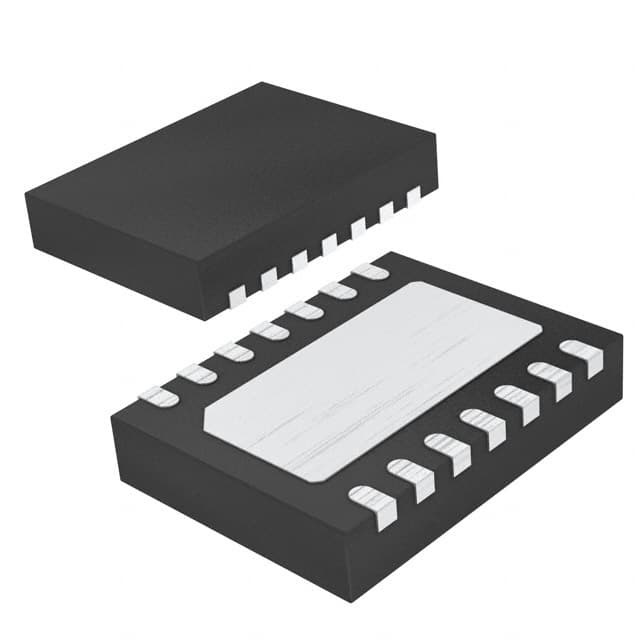

ISSI IS31BL3233A-DLS2-TR

Manufacturer No:

IS31BL3233A-DLS2-TR

Manufacturer:

ISSI

Package:

14-WFDFN Exposed Pad

Description:

0.4mm PMIC 2MHz 3.6V 14-WFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS31BL3233A-DLS2-TR information

ISSI IS31BL3233A-DLS2-TR technical specifications, attributes, parameters and parts with similar specifications to ISSI IS31BL3233A-DLS2-TR.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-WFDFN Exposed Pad

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
14

ECCN Code
EAR99

Type
DC DC Regulator

Applications
Backlight, Camera Flash

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.4mm

Frequency
2MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-N14

Number of Outputs
2

Max Supply Voltage
5.5V

Topology
Step-Up (Boost)

Current - Output / Channel
750mA Flash

Internal Switch(s)
Yes

Dimming
PWM

Number of Segments
2

Voltage - Supply (Min)
2.7V

Length
3mm

Height Seated (Max)
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS31BL3233A-DLS2-TR.

IS31BL3233A-DLS2-TR Overview

There is also a 14-WFDFN Exposed Pad package that is used to save space on the board. Using this LED driver, there are 2 outputs.As far as mounting is concerned, Surface Mount is adopted.DC DC Regulator emerges with high efficiency and reliability.If the led driver ic is set to -40°C~85°C TA, it will work normally.Backlight, Camera Flash has many advantages.It operates on the basis of the frequency of 2MHz.It operates with terminations of 14.If the voltage supply is below 2.7V, undetermined failures may occur.It is estimated that there are 2 segments.It's mounted by Surface Mount.Ideally, the supply voltage should be 5.5V.

IS31BL3233A-DLS2-TR Features

Available in the 14-WFDFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 2MHz
Supply voltage of 3.6V

IS31BL3233A-DLS2-TR Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS31BL3233A-DLS2-TR LED Driver ICs applications.

Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
A- lamps
General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
Industrial LED Lighting: Image Recognition Devices
