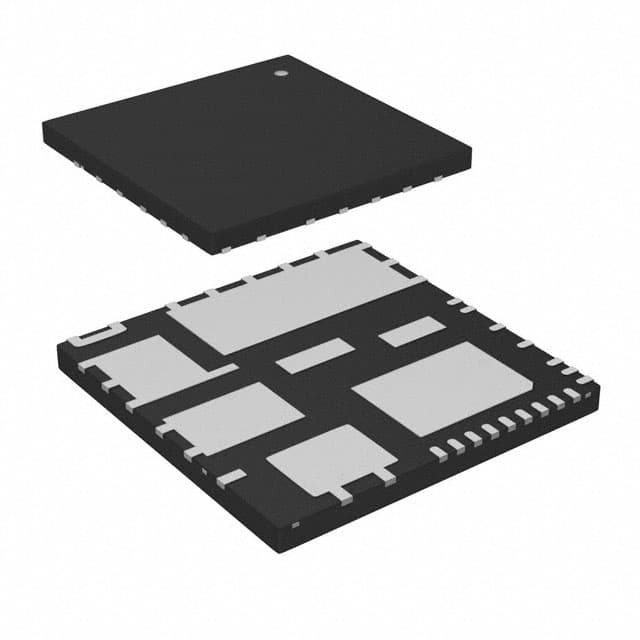

INFINEON IRSM836-045MA
Manufacturer No:
IRSM836-045MA
Manufacturer:
Package:
37-PowerVQFN
Description:
4A mA 950?m mm 12mm mm Motor Drivers 37 15V V 12mm mm Motion Control Electronics
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IRSM836-045MA information
INFINEON IRSM836-045MA technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRSM836-045MA.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- PCB, Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 37-PowerVQFN
- Number of Pins
- 37
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tray
- Published
- 2013
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 37
- Applications
- Appliance
- Subcategory
- Motion Control Electronics
- Max Power Dissipation
- 24W
- Technology
- UMOS
- Voltage - Supply
- 13.5V~16.5V
- Terminal Position
- QUAD
- Supply Voltage
- 15V
- Base Part Number
- IRSM836-045
- Function
- Driver - Fully Integrated, Control and Power Stage
- Number of Outputs
- 3
- Max Output Current
- 4A
- Power Supplies
- 15V
- Interface
- Parallel
- Nominal Supply Current
- 125?A
- Output Configuration
- Half Bridge (3)
- Max Supply Current
- 10mA
- Turn On Delay Time
- 1.5 ?s
- Logic Function
- AND
- Turn-Off Delay Time
- 1.5 ?s
- Collector Emitter Voltage (VCEO)
- 500V
- Max Collector Current
- 4A
- Voltage - Load
- 400V Max
- Number of Drivers
- 6
- Isolation Voltage
- 1.5kV
- Switching Frequency
- 20kHz
- Motor Type - AC, DC
- AC, Synchronous
- Height
- 950?m
- Length
- 12mm
- Width
- 12mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for INFINEON IRSM836-045MA.
Other Related Documents:
PCN Packaging:
Datasheets:
ConflictMineralStatement:
IRSM836-045MA Overview
Drivers controllers is designed with Tray package.The part is packged with 37-PowerVQFN case.Drivers controllers is recommended to mount the part by Surface Mount.Drivers controllers is fDrivers controllersting for the component connected in Appliance.The device can supply 13.5V~16.5V volts.With regard to operating temperature, it ranges -40°C~150°C TJ. The motor type can be classified as AC, Synchronous.There are 37 terminations available in the part.The voltage can applied to the load at the rate of 400V Max.Please take in mind that this amplifier should be run at 15V.Its recommended mounting way is PCB, Surface Mount.The device employs the AC MOTOR CONTROLLER analog IC.Drivers controllers is based on the IRSM836-045 part number.Drivers controllers is designed wDrivers controllersh 37 pins.Drivers controllers belongs to Motion Control Electronics series.There are 3 outputs available.Its maximal output current reaches 4A to meet the operation requirements.Controller ic is equipped wController ich 6 drivers.
