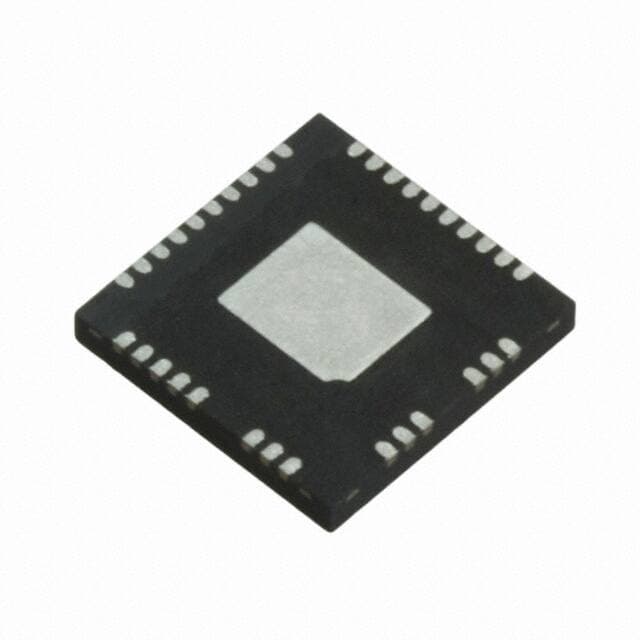

INFINEON IRS2336DMTRPBF
Manufacturer No:
IRS2336DMTRPBF
Manufacturer:
Package:
48-VFQFN Exposed Pad, 34 Leads
Description:
Surface Mount Tape & Reel (TR) Active EAR99 Gate Drivers ICs Inverting 6 600V V 48-VFQFN Exposed Pad, 34 Leads IRS2336DMPBF Half-Bridge
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IRS2336DMTRPBF information
INFINEON IRS2336DMTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRS2336DMTRPBF.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 48-VFQFN Exposed Pad, 34 Leads
- Number of Pins
- 34
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 1996
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 34
- ECCN Code
- EAR99
- Resistance
- 100Ohm
- Terminal Finish
- Matte Tin (Sn)
- HTS Code
- 8542.39.00.01
- Max Power Dissipation
- 2W
- Technology
- CMOS
- Voltage - Supply
- 10V~20V
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Number of Functions
- 1
- Supply Voltage
- 15V
- Base Part Number
- IRS2336DMPBF
- Max Output Current
- 350mA
- Power Dissipation
- 2W
- Output Current
- 200mA
- Propagation Delay
- 750 ns
- Input Type
- Inverting
- Turn On Delay Time
- 530 ns
- Rise Time
- 190ns
- Fall Time (Typ)
- 75 ns
- Turn-Off Delay Time
- 530 ns
- Output Polarity
- INVERTED
- Input Characteristics
- STANDARD
- Rise / Fall Time (Typ)
- 125ns 50ns
- Interface IC Type
- BUFFER OR INVERTER BASED MOSFET DRIVER
- Channel Type
- 3-Phase
- Number of Drivers
- 6
- Turn On Time
- 0.75 ?s
- Output Peak Current Limit-Nom
- 0.35A
- Driven Configuration
- Half-Bridge
- Gate Type
- IGBT, N-Channel MOSFET
- Current - Peak Output (Source, Sink)
- 200mA 350mA
- High Side Driver
- YES
- Logic Voltage - VIL, VIH
- 0.8V 2.5V
- Turn Off Time
- 0.75 ?s
Download datasheets and manufacturer documentation for INFINEON IRS2336DMTRPBF.
Other Related Documents:
ConflictMineralStatement:
IRS2336DMTRPBF Overview
For greater flexibility, the 48-VFQFN Exposed Pad, 34 Leads package is adopted.A package of Tape & Reel (TR) has been used.This configuration includes 6 drivers.The device is mounted in the direction of Surface Mount.A supply voltage of 10V~20V demonstrates its superiority.IGBT, N-Channel MOSFET is the gate type used for this design.Mosfet driver is possible to use this device at temperatures as low as -40°C~150°C TJ.The input type is Inverting.Mosfet driver consists of 34 terminations as Mosfet drivers foundation.There are various related parts under its base part number IRS2336DMPBF.The device is mounted using Surface Mount.The pins are configured with 34 when designing the chip.The device is specifically designed to operate at 15V volts.Its interface IC is BUFFER OR INVERTER BASED MOSFET DRIVER.350mA is the maximum output current.There can be a voltage up to 600V on the high-side (Bootstrap).An output current of 200mA is supported.2W dissipates maximum power without overheating, showing its maximum capability to transfer and conduct power loss.The input is characterized by STANDARD.Resistance 100Ohm is used for operation.
IRS2336DMTRPBF Features
Embedded in the Tape & Reel (TR) package
6 drivers
Employing a gate type of IGBT, N-Channel MOSFET
34 pins
High-side voltage - Max (Bootstrap) of 600V
Maximum power dissipation of 2W
Resistance of 100Ohm
IRS2336DMTRPBF Applications
There are a lot of Infineon Technologies
IRS2336DMTRPBF gate drivers applications.
- PCMCIA applications
- A/D drivers
- Line drivers
- Portable computers
- High-speed communications
- RGB applications
- Broadcast equipment
- Active filtering
- Head-up and Head mounted displays
- High current laser/LED systems
