INFINEON IRS2334MTRPBF

Manufacturer No:

IRS2334MTRPBF

Manufacturer:

INFINEON

Package:

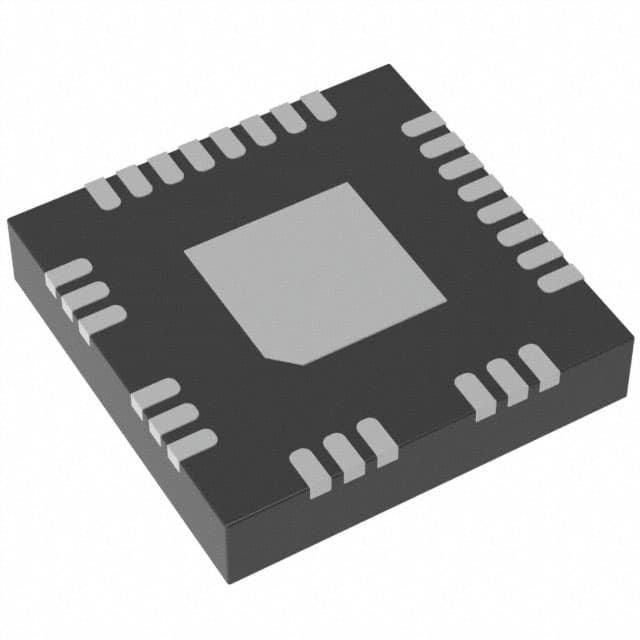

28-VFQFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Active EAR99 Gate Drivers ICs Non-Inverting 6 600V V 28-VFQFN Exposed Pad IRS2334MPBF Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRS2334MTRPBF information

INFINEON IRS2334MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRS2334MTRPBF.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-VFQFN Exposed Pad

Number of Pins
28

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
1996

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

ECCN Code
EAR99

HTS Code
8542.39.00.01

Subcategory
MOSFET Drivers

Max Power Dissipation
3.363W

Voltage - Supply
10V~20V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
IRS2334MPBF

Max Output Current
200mA

Power Supplies
15V

Nominal Supply Current
200mA

Output Current
200mA

Propagation Delay
750 ns

Input Type
Non-Inverting

Turn On Delay Time
750 ns

Rise Time
125ns

Fall Time (Typ)
50 ns

Turn-Off Delay Time
750 ns

Rise / Fall Time (Typ)
125ns 50ns

Channel Type
3-Phase

Number of Drivers
6

Turn On Time
0.75 ?s

Driven Configuration
Half-Bridge

Gate Type
IGBT, N-Channel MOSFET

Current - Peak Output (Source, Sink)
200mA 350mA

Logic Voltage - VIL, VIH
0.8V 2.5V

Turn Off Time
0.75 ?s

Built-in Protections
TRANSIENT; OVER CURRENT; UNDER VOLTAGE

High Side Voltage - Max (Bootstrap)
600V

Length
5mm

Height Seated (Max)
1mm

Download datasheets and manufacturer documentation for INFINEON IRS2334MTRPBF.

IRS2334MTRPBF Overview

In order to increase flexibility, the package 28-VFQFN Exposed Pad is used.There is a package in the form of Tape & Reel (TR).Configuration is supported by 6 drivers.Surface Mount is mounted in the way of the device.Gate drivers can demonstrate Gate driverss superiorGate driversy wGate driversh a 10V~20V supply voltage.This device is designed with a IGBT, N-Channel MOSFET gate type.This device is allowed to operate in a temperature range of -40°C~150°C TJ.This program uses the input type of Non-Inverting.The configuration starts with 28 terminations.Numerous related parts are available for its base part number IRS2334MPBF.In this case, Surface Mount indicates how the device is to be mounted.As a result, it is configured with 28 pins when it is designed.With a supply voltage of 15V, it is designed to operate.In the maximum case, the output current can be 200mA volts.There are several useful electronic components within its subcategory MOSFET Drivers.A boot strap voltage of 600V is the maximum possible high-side voltage.The device is capable of delivering a current of 200mA.Its maximum power dissipation of 3.363W also demonstrates its maximum ability to transfer power without overheating.The power supply of 15V is able to solve the power supply problems for a wide variety of applications.

IRS2334MTRPBF Features

Embedded in the Tape & Reel (TR) package
6 drivers
Employing a gate type of IGBT, N-Channel MOSFET
28 pins
High-side voltage - Max (Bootstrap) of 600V
Maximum power dissipation of 3.363W

IRS2334MTRPBF Applications

There are a lot of Infineon Technologies
IRS2334MTRPBF gate drivers applications.

High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
